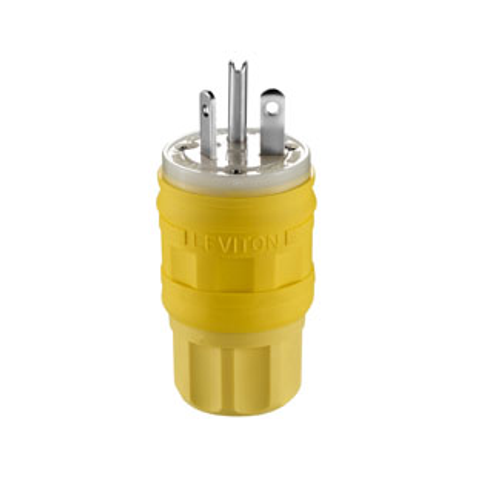

20A, 347V NEMA 24-20P, 2P, 3W, Plug, Straight Blade, Grounding, Wetguard (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$77.78 each
Out of Stock
Get it Wed, Jul 15 - Wed, Jul 22
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Yellow
20 Amps
Lifetime Limited Warranty
EPTR Rubber
Description
–
Features
Specifications
- THE BRAND YOU TRUST- Backed by a lifetime warranty
- UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
- Innovative strain relief and cord sealing system features a deep fluted compression nut, strain relief washer, and EPTR grommet for most reliable seal
- 24-20R
- Corrosion resistant, watertight, and dust tight connector NEMA Type 3, 3S, 4, 4X, 6, & 6P
- Corrosion resistant, nickel-plated brass blades and terminal screws plus non-magnetic stainless steel face module screws
- Available in high visibility yellow
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- Meets IP66 and IP67 standards when mated with a Wetguard connector or inserted in to a corrosion resistant receptacle with a Wetguard flip lid. Plug caps are available to protect the plug when not used
- Amperage, voltage, and NEMA configuration are molded into the face module making identification and replacement faster and easier
- Interlocking tongue and groove construction between face module and housing prevents moisture and debris from passing around the face module during use
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- Santoprene EPTR housing, grommet, and closure cap resist water, most acids, alkalies, grease, oil, and solvents. EPTR offers enhanced UV stability and resists fungal growth
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
Specifications
- Blades/Contacts: Nickel-Plated Brass
- Assembly Screws: Stainless Steel 300
- Standards and Certifications: UL/CSA
- Body Material: EPTR Rubber
- Environment: Wet
- Cord Range: .375 - .655
- IP Rating: IP66, IP67, IP69K
- Brand: Wetguard
- Warranty: Limited Lifetime Warranty
- Amperage: 20 A
- Device Type: Straight Blade Plug
- RoHS Compliant: TRUE
- Voltage: 347 VAC
- Wire: 3
- Pole: 2
- Wire Gauge: 18-10 AWG
- Country of Origin: Mexico
- Color: Yellow
- Grounding: Grounding
- NEMA: 24-20R
Specs
–
| NEMA Rating: | 24-20R |
|---|---|
| Color: | Yellow |
| Product Type: | Straight Blade Plug |
| Series: | Wetguard |
| Amperage: | 20 |
| Poles: | 2 |
| Ground: | Grounding |
| Warranty: | Lifetime Limited |
| Country of Origin: | Mexico |
| Material: | EPTR Rubber |
