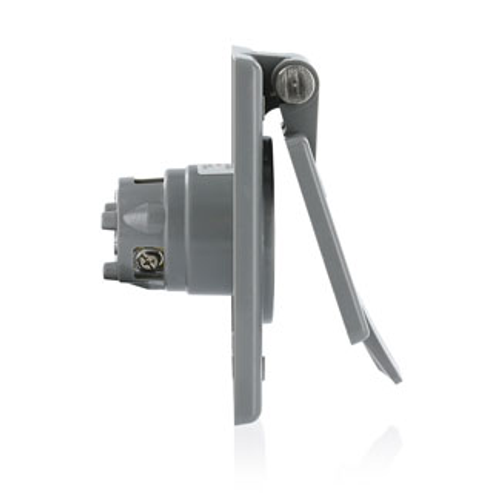

20A, 125V NEMA 5-20P, 2P, 3W, Power Inlet Receptacle, Straight Blade, Grounding, Standard Wire Wells Wired, Nylon Strap (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$29.84 each
In Stock
Get 73 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
Gray
Nylon
10 years Warranty
Description
–
Features
Specifications
- Leviton's Straight Blade Power Inlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
- 5-20P
Specifications
- Dielectric Voltage: Withstands 1500V per UL498
- Grounding Screw: Brass 8-32
- ANSI: C-73
- Terminal Screws: Brass 10-32
- Environment: Dry
- Pole: 2
- Device Type: Straight Blade Flanged Inlet
- Flammability: Rated V-2 per UL 94
- Grounding: Grounding
- Current Limiting: Full Rated Current
- At Rated Voltage: 1 HP
- Wire: 3
- Face Material: Nylon
- Strap Material: Nylon
- Country of Origin: United States
- Termination: Standard Wire Wells
- Color: Gray
- Warranty: 10-Year Limited
- UL498: File E13393
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Operating Temperature: -40 °C to 60 °C
- CSA C22.2 No. 42: File LR-16347
- Line Contacts: Brass
- RoHS Compliant: TRUE
- NEMA: WD-6
- Cover and Plate Material: Glass-Filled Thermoplastic
- Product ID: Markings are permanently marked on device
- Voltage: 125 VAC
- Amperage: 20 A
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Terminal Accom.: 18-10 AWG
- Body Material: Nylon
Specs
–
| NEMA Rating: | WD-6 |
|---|---|
| Amperage: | 20 |
| Color: | Gray |
| Poles: | 2 |
| Material: | Nylon |
| Ground: | Grounding |
| Warranty: | 10 years |
| Terminations: | Standard Wire Wells |
| Product Type: | Straight Blade Flanged Inlet |
