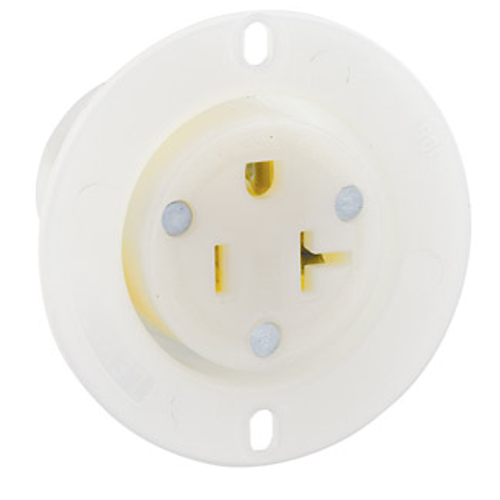

Main product image of 20A, 125V NEMA 5-20R, 2P, 3W, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)
Magnifying glass
Hover image to zoom

20A, 125V NEMA 5-20R, 2P, 3W, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)

Brand:
Leviton
SKU:
15379-C
Rating:
(0)
Q&A:
(0)
20A, 125V NEMA 5-20R, 2P, 3W, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)
Magnifying glass
Hover image to zoom
$14.56 each
In Stock
In Stock
Get 11 Tue, Oct 6
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
20 Amps
Product Highlight: Material
Super Tough Nylon
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Color
White

Description

–
Features
  • 5-20R
  • Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

Specifications
  • Brand: Black and White
  • Device Type: Straight Blade Flanged Outlet
  • Operating Temperature: -40 °C to 60 °C
  • Wire: 3
  • ANSI: C-73
  • UL 498: File E13399
  • Terminal Screws: Brass
  • Country of Origin: Mexico
  • Strap Material: Thermoplastic Nylon
  • Voltage: 125 VAC
  • Face Material: Nylon
  • Dielectric Voltage: Withstands 2000V per UL498
  • Body Material: Super Tough Nylon
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Amperage: 20 A
  • Current Interrupting: Certified for current interrupting at full rated current
  • Blades/Contacts: Solid Brass
  • Assembly Screws: Steel, Zinc Plated
  • Screw Terminal Torque: 10-14 in-lbs
  • RoHS Compliant: TRUE
  • Grounding: Grounding
  • UL Fed Spec WC-596: File E13393
  • Warranty: Limited Lifetime Warranty
  • NOM: 57
  • Color: White
  • Termination: Back
  • Terminal Accom.: 18-10 AWG
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Environment: Dry
  • NEMA: WD-6
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • CSA C22.2 No. 42: File LR-406
  • Wire Module: Nylon
  • Pole: 2
  • Flammability: Rated V-2 per UL 94

Specs

–
Amperage:

20

Material:

Super Tough Nylon

Warranty:

Lifetime Limited

Color:

White

Terminations:

Back Wire

Country of Origin:

Mexico

Series:

Black & White

Poles:

2

Ground:

Grounding

Product Type:

Straight Blade Flanged Outlet

NEMA Rating:

WD-6
