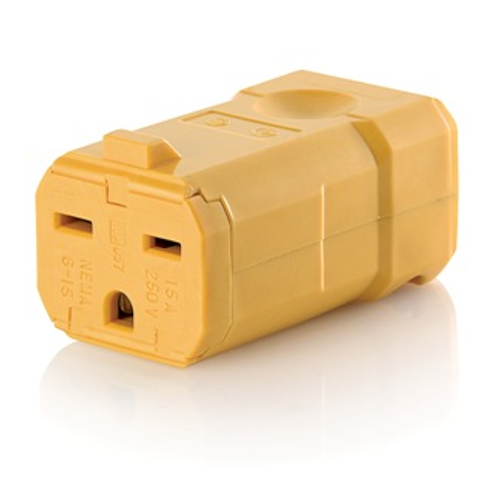

Main product image of 15A, 250V NEMA 6-15R, 2P, 3W, Connector, Straight Blade, Grounding, Python (Yellow)
Magnifying glass
Hover image to zoom

15A, 250V NEMA 6-15R, 2P, 3W, Connector, Straight Blade, Grounding, Python (Yellow)

Brand:
Leviton
SKU:
15659-VY
Rating:
(0)
Q&A:
(0)
15A, 250V NEMA 6-15R, 2P, 3W, Connector, Straight Blade, Grounding, Python (Yellow)
Magnifying glass
Hover image to zoom
$22.18 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
2 years Warranty
Product Highlight: Amperage
15 Amps
Product Highlight: Material
Super Tough Nylon
Product Highlight: Color
Yellow

Description

–
Features
  • 6-15R
  • When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.

Specifications
  • Body Material: Super Tough Nylon
  • ANSI: C-73
  • Amperage: 15 A
  • Operating Temperature: -40 °C to 60 °C
  • Country of Origin: Mexico
  • UL 498: File E13399
  • NEMA: WD-6
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Assembly Screws: Steel, Zinc Plated
  • Current Interrupting: Certified for current interrupting at full rated current
  • Wire Module: Nylon
  • Blades/Contacts: Solid Brass
  • Wire: 3
  • Pole: 2
  • Clamp Insert: Nylon
  • Cord-Clamp: Nylon
  • Brand: Python
  • CSA C22.2 No. 42: File LR-406
  • Warranty: 2-Year Limited
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Grounding: Grounding
  • Voltage: 250 VAC
  • Back Cover: Thermoplastic
  • Flammability: Rated V-2 per UL 94
  • Cord Range: .245 - .700
  • Device Type: Straight Blade Connector
  • RoHS Compliant: TRUE
  • Color: Yellow
  • Environment: Dry
  • NOM: 57
  • Terminal Screws: Brass
  • Terminal Accom.: 18-10 AWG
  • Dielectric Voltage: Withstands 2000V per UL498
  • Product ID: Ratings and NEMA I.D. permanently marked on device

Specs

–
Warranty:

2 years

Amperage:

15

Poles:

2

Material:

Super Tough Nylon

Product Type:

Straight Blade Connector

Color:

Yellow

NEMA Rating:

WD-6

Series:

Python

Country of Origin:

Mexico

Ground:

Grounding
