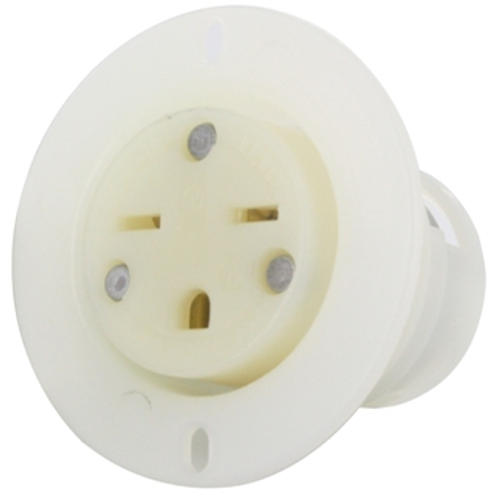

15A, 250V Flanged Outlet Receptacle, Straight Blade, Industrial Grade
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$13.70 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Lifetime Limited Warranty
White
15 Amps
Description
–
Features
Specifications
- 6-15R
- Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
Specifications
- Warranty: Limited Lifetime Warranty
- Brand: Black and White
- Wire Module: Nylon
- Terminal Accom.: 18-10 AWG
- NOM: 57
- Operating Temperature: -40 °C to 60 °C
- Screw Terminal Torque: 10-14 in-lbs
- Grounding: Grounding
- Body Material: Super Tough Nylon
- Country of Origin: Mexico
- Pole: 2
- ANSI: C-73
- Termination: Back
- NEMA: WD-6
- RoHS Compliant: TRUE
- Terminal Screws: Brass
- Assembly Screws: Steel, Zinc Plated
- Amperage: 15 A
- Flammability: Rated V-2 per UL 94
- Environment: Dry
- Color: White
- Face Material: Nylon
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Strap Material: Thermoplastic Nylon
- Current Interrupting: Certified for current interrupting at full rated current
- Voltage: 250 VAC
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Blades/Contacts: Solid Brass
- Device Type: Straight Blade Flanged Inlet
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- UL 498: File E13399
- CSA C22.2 No. 42: File LR-406
- Dielectric Voltage: Withstands 2000V per UL498
- UL Fed Spec WC-596: File E13393
- Wire: 3
Specs
–
| Warranty: | Lifetime Limited |
|---|---|
| Country of Origin: | Mexico |
| Terminations: | Back Wire |
| Poles: | 2 |
| NEMA Rating: | WD-6 |
| Product Type: | Straight Blade Flanged Inlet |
| Color: | White |
| Amperage: | 15 |
| Series: | Black & White |
| Ground: | Grounding |
