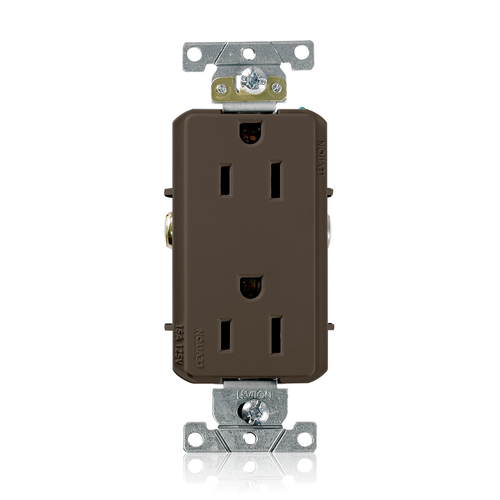

Decora Plus Duplex Receptacle Outlet, Smooth Face, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$7.90 each
In Stock
Get 9 Wed, Jul 8
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
- Ground Clips: Brass-Plated
- Country of Origin: Mexico
- RoHS: RoHS Compliant
- RoHS Compliant: FALSE
- Clamp Nuts: Zinc-Plated Steel
- Terminal Screws: #8 Triple-Drive Brass
- Dielectric Voltage: Withstands 3000V min
- Pole: 2
- Grade: Commercial Specification Grade
- At Rated Voltage: 1/2 HP
- Grounding: Self-Grounding
- Color: Brown
- Amperage: 15 A
- Product ID: Ratings are permanently marked on device
- Grounding: Self-Grounding
- Grounding Screw: #8 Hex Head, Triple-Drive Brass
- Termination: Back and Side Wire
- Temperature Rise: Max 30 °C temperature rise at full rated current
- Grounding Screw: #8 Hex Head, Triple-Drive Brass
- Temperature Rise: Max 30 °C temperature rise at full rated current
- Device Type: Duplex Receptacle Outlet
- Ground Clips: Brass-Plated
- Line Contacts: 0.030" Phosphor Bronze
- Body Material: PBT Polyester Blend
- Terminal Accom.: 14-10 AWG
- Strap Material: Steel (Galvanized G60)
- Flammability: Rated V-2 per UL 94
- Current Limiting: Full Rated Current
- Terminal Accom.: 14-10 AWG
- Pole: 2
- NEMA: 5-15R
- Color: Brown
- Warranty: 10-Year Limited
- Face Material: PBT Polyester Blend
- Dielectric Voltage: Withstands 3000V min
- Body Material: PBT Polyester Blend
- Operating Temperature: -40 °C to 60 °C
- At Rated Voltage: 1/2 HP
- ANSI: C-73
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Wire: 3
- Termination: Back and Side Wire
- Voltage: 125 VAC
- Amperage: 15 A
- CSA C22.2 No. 42: File LR-406
- Color: Brown
- Voltage: 125 VAC
- Certification/Listing: cULus, NON-ANCE
- Feature 4: Smooth Face
- Flammability: Rated V-2 per UL 94
- Wire: 3
- Strap Material: Steel (Galvanized G60)
- UL498: File E13399
- Brand: Decora Plus
- Product ID: Ratings are permanently marked on device
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Operating Temperature: -40 °C to 60 °C
- Line Contacts: 0.030" Phosphor Bronze
- Current Limiting: Full Rated Current
- Screw Terminal Torque: 14-18 in-lbs
- Terminal Screws: #8 Triple-Drive Brass
- Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
- Face Material: PBT Polyester Blend
- NOM: 57
Specs
–
| Country of Origin: | Mexico |
|---|
