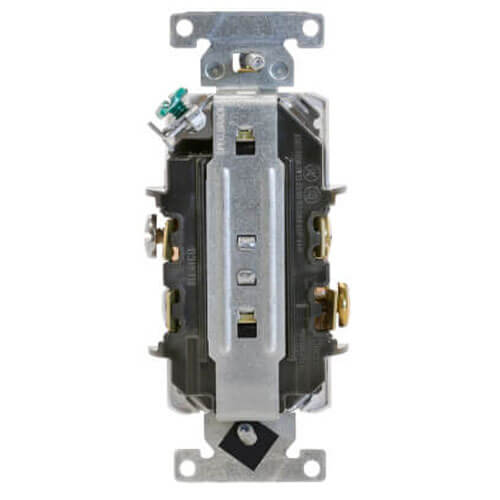

2 Pole Decora Plus Duplex Receptacle, Back and Side Wired, 15A, NEMA 5-15R, White - (125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White

Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Electrical Specifications:

• Termination: Back and Side Wired
• Amperage: 15 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 3000V min
• Flammability: Rated V-2 per UL 94
• Grounding: Self-Grounding
• Operating Temperature: -40°C to 60°C
• Pole: 2
• Temperature Rise: Max 30°C temperature rise at full rated current
• Voltage: 125 VAC
• Wire: 3

Standards and Certifications:

• ANSI: C-73
• Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42 At Rated Voltage: 1/2 HP
• Certification/Listing: cULus, NON-ANCE
• RoHS: RoHS Compliant
• Warranty: 10-Year Limited
