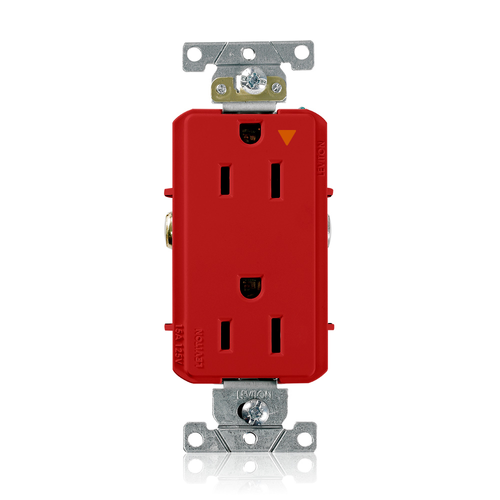

Decora Plus Isolated Ground Duplex Receptacle Outlet, Smooth Face, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding, Red
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$16.56 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Red
15 Amps
Heavy-Duty Industrial
10 years Warranty
Description
–
Features
- Ground Clips: Brass
- Pole: 2
- Face Material: PBT Polyester Blend
- Horsepower Rating: 1/2 HP
- Operating Temperature: -40 °C to 75 °C
- Termination: Back or Side Wire
- Flammability: Rated V-0 per UL 94
- Country of Origin: Mexico
- Color/Feature: Red
- Ground Clips: Brass
- Ground Contacts: 0.030" Brass
- Terminal ID: Brass - Hot, Green - Ground, Silver - Neutral
- Wire: 3
- Color: Red
- Certification/Listing: cULus, NOM-ANCE
- Feature 4: Smooth Face
- Screw Terminal Torque: 14-18 in-lbs
- RoHS Compliant: FALSE
- Certification/Listing: cULus, NOM-ANCE
- Strap Material: Steel
- Warranty: 10-Year Limited
- Operating Temperature: -40 °C to 75 °C
- Function: Isolated Ground
- Brand: Decora Plus
- Wire Type: Stranded or Solid
- Grounding: Self-Grounding
- Line Contacts: 0.030" Phosphor Bronze
- Wire: 3
- Horsepower Rating: 1/2 HP
- Grounding: Self-Grounding
- Dielectric Voltage: Withstands 3000 V minimum
- Ground Contacts: 0.030" Brass
- Terminal Accom.: #14 AWG - #10 AWG
- Temperature Rise: Max 30 °C after 250 cycles OL at 200 percent rated current
- Grounding Screw: #8 hex head, triple drive Brass
- Terminal Screws: #8 Triple-Drive Brass
- Terminal Clamps: Brass
- Strap Material: Steel
- Product ID: Ratings are permanently marked on device
- Terminal Clamps: Brass
- Face Material: PBT Polyester Blend
- Terminal Accom.: #14 AWG - #10 AWG
- ANSI: C-73
- Grounding Screw: #8 hex head, triple drive Brass
- Termination: Back or Side Wire
- Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
- Flammability: Rated V-0 per UL 94
- Product ID: Ratings are permanently marked on device
- Terminal ID: Brass - Hot, Green - Ground, Silver - Neutral
- Pole: 2
- Voltage: 125 VAC
- Body Material: PBT Polyester Blend
- Mounting Screws: Triple-Drive Plated Steel
- Body Material: PBT Polyester Blend
- Voltage: 125 VAC
- Shutter Mechanism: Acetal
- Temperature Rise: Max 30 °C after 250 cycles OL at 200 percent rated current
- Amperage: 15 A
- Terminal Screws: #8 Triple-Drive Brass
- RoHS: RoHS Compliant
- Mounting Screws: Triple-Drive Plated Steel
- Line Contacts: 0.030" Phosphor Bronze
- Dielectric Voltage: Withstands 3000 V minimum
- Amperage: 15 A
- Device Type: Duplex Receptacle Outlet
- Wire Type: Stranded or Solid
- Grade: Heavy-Duty Industrial Specification Grade
Specs
–
| Color: | Red |
|---|---|
| Poles: | 2 |
| Product Type: | Duplex Receptacle |
| Series: | Decora Plus |
| Amperage: | 15 |
| Ground: | Self-Grounding |
| Country of Origin: | Mexico |
| Terminations: | Back Wire Side Wire |
| Grade: | Heavy-Duty Industrial |
| Warranty: | 10 years |
