Apply to be a TradeMaster!

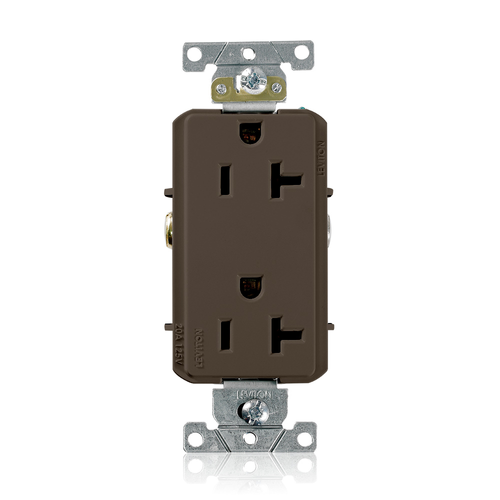

Main product image of Decora Plus Duplex Receptacle Outlet, Smooth Face, 20A, 125V Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding (Brown)
Magnifying glass
Hover image to zoom

Decora Plus Duplex Receptacle Outlet, Smooth Face, 20A, 125V Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding (Brown)

Brand:
Leviton
SKU:
16342
Rating:
(0)
Q&A:
(0)
Decora Plus Duplex Receptacle Outlet, Smooth Face, 20A, 125V Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding (Brown)
Magnifying glass
Hover image to zoom
$8.69 each
In Stock
In Stock
Get 10 Tue, Jul 14
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Description

–
Features
  • Feature 4: Smooth Face
  • Pole: 2
  • Product ID: Ratings are permanently marked on device
  • Face Material: PBT Polyester Blend
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Strap Material: Steel (Galvanized G60)
  • Flammability: Rated V-2 per UL 94
  • Body Material: PBT Polyester Blend
  • NEMA: WD-1 & WD-6
  • Clamp Nuts: Steel
  • Brand: Decora Plus
  • Dielectric Voltage: Withstands 3000V per UL498
  • ANSI: C-73
  • Termination: Side Wire
  • Temperature Rise: Max 30C temperature rise at full rated current
  • Amperage: 20 A
  • Voltage: 125 VAC
  • Current Limiting: Full Rated Current
  • At Rated Voltage: 1 HP
  • Country of Origin: Mexico
  • Terminal Accom.: 14-10 AWG
  • Grounding: Self-Grounding
  • Line Contacts: .030" Brass
  • Screw Terminal Torque: 14-18 in-lbs
  • Terminal Screws: #8 Triple Drive Brass
  • Wire: 3
  • Ground Clips: Brass
  • Color: Brown
  • Operating Temperature: -40 °C to 60 °C
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • RoHS Compliant: FALSE
  • Warranty: 10-Year Limited
