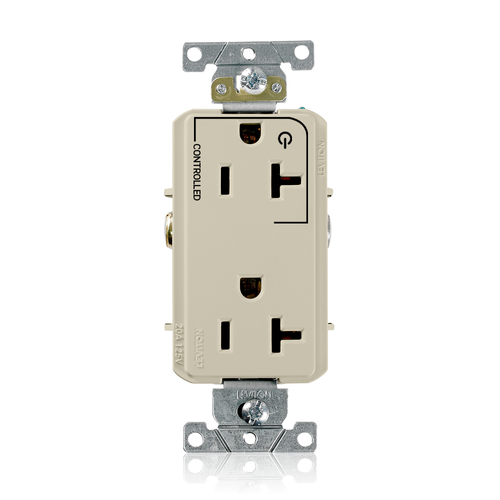

Main product image of Roll Over To Zoom 20A, 125V Decora Plus Duplex Receptacle Outlet, Industrial Grade
Magnifying glass
Hover image to zoom

Roll Over To Zoom 20A, 125V Decora Plus Duplex Receptacle Outlet, Industrial Grade

Brand:
Leviton
SKU:
16352-1PI
Rating:
(0)
Q&A:
(0)
Roll Over To Zoom 20A, 125V Decora Plus Duplex Receptacle Outlet, Industrial Grade
Magnifying glass
Hover image to zoom
$15.42 each
Out of Stock
Out of Stock
Get it Tue, Oct 20 - Tue, Oct 27
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
20 Amps
Product Highlight: Color
Ivory
Product Highlight: Grade
Heavy-Duty Industrial
Product Highlight: Warranty
10 years Warranty
Product Highlight: Material
Nylon

Description

–
Features
  • 5-20R
  • Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.

Specifications
  • Certification/Listing: UL, CSA, NOM-ANCE
  • Strap Material: Zinc-Plated Steel 0.042
  • Body Material: Nylon
  • ANSI: C-73
  • RoHS Compliant: TRUE
  • Country of Origin: Mexico
  • Operating Temperature: -40 °C to 75 °C
  • Ground Clips: Brass
  • Terminal Screws: Brass 10-32
  • At Rated Voltage: 1 HP
  • Voltage: 125 VAC
  • Product ID: Ratings are permanently marked on device
  • Amperage: 20 A
  • Applicable Standards: UL 498, CSA C22.2 No. 42
  • Warranty: 10-Year Limited
  • Grounding: Self-Grounding
  • Feature: Split-circuit, One Outlet Marked "Controlled"|Smooth Face
  • Grade: Heavy-Duty Industrial Specification Grade
  • Terminal Clamp: Zinc-Plated Steel
  • Color: Ivory
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Face Material: Nylon
  • Screw Terminal Torque: 14-18 in-lbs
  • Terminal Accom.: 14-10 AWG
  • Wire Type: Solid or Stranded Building Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Dielectric Voltage: Withstands 2000V per UL498
  • Brand: Decora Plus
  • NEMA: WD-1 & WD-6
  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Grounding Screw: Zinc-Plated Steel 8-32
  • Device Type: Duplex Receptacle Outlet
  • Termination: Back or Side Wire

Specs

–
Amperage:

20

Color:

Ivory

Series:

Decora Plus

NEMA Rating:

WD-1

Grade:

Heavy-Duty Industrial

Terminations:

Back Wire

Side Wire

Ground:

Self-Grounding

Warranty:

10 years

Country of Origin:

Mexico

Product Type:

Duplex Receptacle

Material:

Nylon
