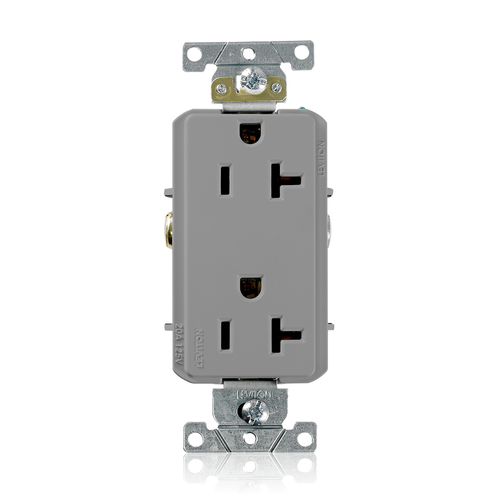

20A Decora Plus Duplex Receptacle/outlet, Self-grounding, Back/Side Wire (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$12.54 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Thermoplastic Nylon
10 years Warranty
20 Amps
Gray
Commercial
Description
–
Features
Specifications
- Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
- 5-20R
Specifications
- Face Material: Thermoplastic Nylon
- Device Type: Duplex Receptacle Outlet
- Country of Origin: Mexico
- Product ID: Ratings are permanently marked on device
- Color: Gray
- Grounding: Self-Grounding
- Clamp Nuts: Zinc-Plated Steel
- Body Material: Thermoplastic Nylon
- NEMA: WD-1, WD-6
- UL498: File E13399
- CSA C22.2 No. 42: File LR-406
- Voltage: 125 VAC
- Terminal Screws: Brass 10-32
- At Rated Voltage: 1 HP
- Brand: Decora Plus
- Warranty: 10-Year Limited
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- RoHS Compliant: TRUE
- Grounding Screw: Brass 8-32
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Ground Clips: Brass-Plated
- Terminal Accom.: 14-10 AWG
- NOM: 57
- Grade: Commercial Specification Grade
- Screw Terminal Torque: 14-18 in-lbs
- Amperage: 20 A
- Current Limiting: Full Rated Current
- Line Contacts: Brass Triple-Wipe .031 Thick
- Strap Material: Zinc-Plated Steel
- Feature 4: Smooth Face
- Dielectric Voltage: Withstands 2000V per UL498
- Termination: Back or Side Wire
- ANSI: C-73
Specs
–
| Series: | Decora Plus |
|---|---|
| Material: | Thermoplastic Nylon |
| Country of Origin: | Mexico |
| Terminations: | Side Wire Back Wire |
| Warranty: | 10 years |
| Ground: | Self-Grounding |
| Product Type: | Duplex Receptacle |
| Amperage: | 20 |
| Color: | Gray |
| NEMA Rating: | WD-1, WD-6 |
| Grade: | Commercial |
