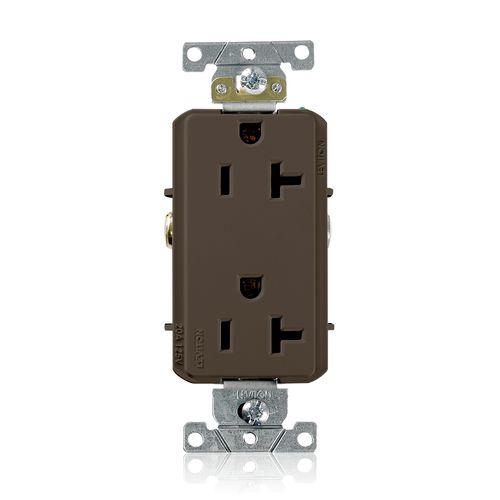

Decora Plus Duplex Receptacle, Heavy-Duty Industrial Specification, 20A 125V NEMA 5-20R (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$12.54 each
Out of Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- 5-20R
- Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Body Material: Thermoplastic Nylon
- Color: Brown
- Feature 4: Smooth Face
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Brand: Decora Plus
- Voltage: 125 VAC
- Product ID: Ratings are permanently marked on device
- Grounding: Self-Grounding
- Grounding Screw: Brass 8-32
- Amperage: 20 A
- Termination: Back or Side Wire
- Current Limiting: Full Rated Current
- Terminal Accom.: 14-10 AWG
- ANSI: C-73
- Strap Material: Zinc-Plated Steel
- NOM: 57
- Device Type: Duplex Receptacle Outlet
- Face Material: Thermoplastic Nylon
- NEMA: WD-1, WD-6
- Terminal Screws: Brass 10-32
- CSA C22.2 No. 42: File LR-406
- UL498: File E13399
- Dielectric Voltage: Withstands 2000V per UL498
- At Rated Voltage: 1 HP
- Grade: Commercial Specification Grade
- RoHS Compliant: FALSE
- Country of Origin: Mexico
- Clamp Nuts: Zinc-Plated Steel
- Line Contacts: Brass Triple-Wipe .031 Thick
- Ground Clips: Brass-Plated
- Warranty: 10-Year Limited
- Screw Terminal Torque: 14-18 in-lbs
Specs
–
| Country of Origin: | Mexico |
|---|
