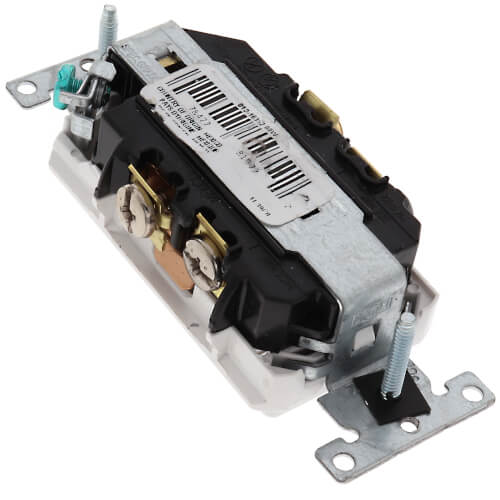

Decora Plus Duplex Receptacle, 20A, Commercial Grade - White (125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

Leviton Decora® Plus Straight blade duplex receptacle in white color features a thermoplastic body and face for impact as well as rust resistance. Receptacle has a power rating of 1 hp and comes with zinc-plated steel strap and clamp nuts. It works at full rated current and can withstand dielectric voltages up to 2000 Volts. Receptacle features large-head terminal screw that is backed out and staked. It can withstand various demands of commercial/institutional applications and features shallow design for maximum wiring room in box as well as captive mounting screws for quick installation. Receptacle has a current rating of 20 Amps and voltage rating of 125 Volts. The 2-Pole self-grounding receptacle has three-wire circuitry and comes with heavy-duty 0.031-Inch thick brass triple-wipe line contacts for longer service life. It measures 1.520 Inch x 1.140 Inch x 4.060 Inch.

Features:

• Quick and Easy Installation
• Leviton's Simplified Quickwire System
• Side and Rear Wiring
• Grounding Screw Attached
• Accepts Wiring Up to #12 AWG; #14 AWG in Canada
• Durable Impact-Resistant Thermoplastic Switch and Frame

Specifications:

• Color: White
• Ground: Self Grounding
• Amperage: 20 Amp
• Voltage: 125 Volt
• NEMA: 5-20R
• Pole: 2
• Wire: 3
• Termination: Side an Rear
• Face Material: Thermoplastic Nylon
• Body Material: Thermoplastic Nylon
• Strap Material: Steel
• Dimensions: 3.28"H (4.06" with break off ears) x 1.31"W
