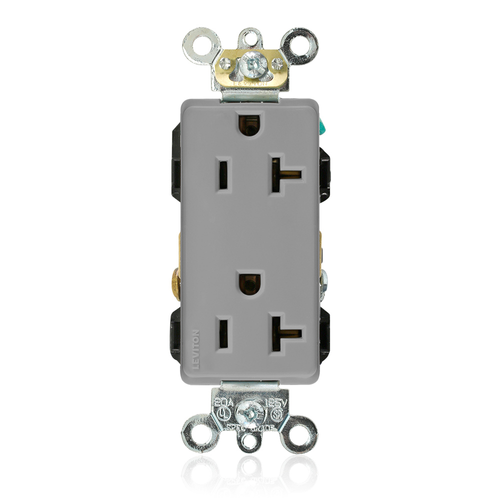

20A Decora Plus Duplex Receptacle/outlet, Self-grounding, Side Wire (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$20.82 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
20 Amps
Gray
Description
–
Features
Specifications
- Leviton offers a large selection of 15 and 20 Amp Commercial Specifications Grade receptacles, including Decora devices available in a wide variety of colors, wiring options and other features. Leviton's Commercial Receptacles are manufactured to withstand the demands of commercial and institutional applications. These commercial receptacles provide long-lasting service life and are a cost-saving alternative to the industrial devices.
- 5-20R
Specifications
- Face Material: Thermoplastic Nylon
- Amperage: 20 A
- Country of Origin: Please Contact Customer Service
- Product ID: Ratings are permanently marked on device
- Line Contacts: Brass Triple-Wipe 0.040Thick
- Strap Material: Zinc-Plated Steel
- UL498: File E13399
- Terminal Screws: Brass 10-32
- Grounding: Self-Grounding
- Grounding Screw: Brass 8-32
- Current Limiting: Full Rated Current
- NEMA: WD-6
- Dielectric Voltage: Withstands 2000V per UL498
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- NOM: 57
- Pole: 2
- ANSI: C-73
- Termination: Back and Side Wire
- Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
- Terminal Accom.: 14-10 AWG
- Flammability: Rated V-2 per UL 94
- Color: Gray
- Voltage: 125 VAC
- Operating Temperature: -40 °C to 60 °C
- Warranty: 10-Year Limited
- Clamp Nuts: Zinc-Plated Steel
- CSA C22.2 No. 42: File 152105
- RoHS Compliant: TRUE
- Body Material: Thermoplastic Nylon
- Ground Clips: Brass-Plated
- Wire: 3
- At Rated Voltage: 1 HP
Specs
–
| Ground: | Self-Grounding |
|---|---|
| NEMA Rating: | WD-6 |
| Poles: | 2 |
| Terminations: | Back Wire Side Wire |
| Warranty: | 10 years |
| Amperage: | 20 |
| Color: | Gray |
