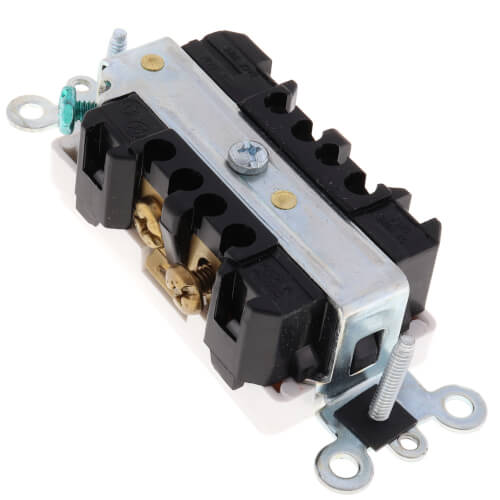

Decora Plus Duplex Receptacle, Back/Side Wire, 15A, NEMA 6-15R, 2P, White (250V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

Decora Plus Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Back or Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - White

Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Features & Benefits:

• Engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction
• Shallow design for maximum wiring room in wallbox
• Back and side terminal wiring options for ease of installation
• Heavy-gauge zinc-plated steel locked-in wrap around strap
• Heavy-duty triple-wipe brass contacts for long service life
• Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity

Electrical Specifications:

• Amperage: 15 A
• AC Horsepower Rating: 1-1/2 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 250 VAC
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C
• NEMA: 6-15R
• Device Type: Duplex Receptacle Outlet
• Feature 4: Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade
• Termination: Back or Side Wire
• Terminal Accom.: 14-10 AWG

Standards and Certifications:

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL498: File E13399
• Warranty: 10-Year Limited
