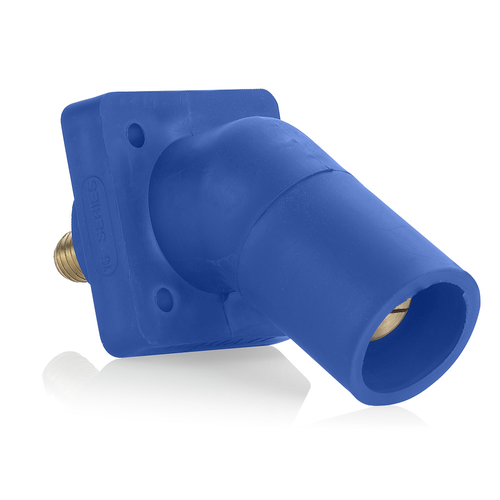

16 Series Male Panel Receptacle, Cam-Type, 45-Degree, Threaded Stud Length- 3/4", Taper Nose, Cable Range, #2 to 4/0 AWG, 400A Max (Blue)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$68.11 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Male Connection
400 Amps
600V
Blue
Description
–
Features
Specifications
- NEMA 3R rated for outdoor use when mated
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
- Designed with cylindrical profile to reduce snap
- Single or double set screw or crimp tube termination
- UL: 1691, 508 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Specifications
- Max. Voltage: 600 Volt
- Color: Blue
- Contacts: Brass
- Max. Amperage: 400 Amp
- UL: 1691, 508 35k A/600V Short Circuit Current Rating
- Country of Origin: Mexico
- NEMA Rating: Type 3R
- Strain Relief: Copper Wire
- Cable Range: 2 4/0 AWG
- RoHS Compliant: TRUE
- CSA Standard: 1691
- Gender: Male
- Connection Type: Threaded Stud
Specs
–
| Connection Type: | Male |
|---|---|
| Amperage: | 400 |
| Voltage: | 600V |
| Country of Origin: | Mexico |
| Color: | Blue |
