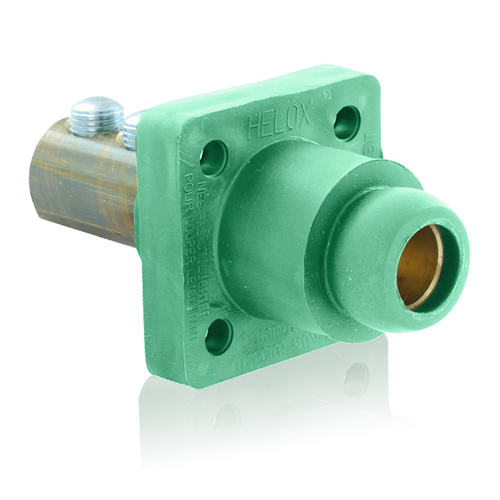

18 Series Cam-Type Female Panel Mount Receptacle, 90-Degree, 2/0 4/0 AWG, 400A Max (Green)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$46.98 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Female Connection
600V
400 Amps
Green
Description
–
Features
Specifications
- NEMA 3R rated for outdoor use when mated
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
- Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- UL: 1691, 508 35k A / 600V Short Circuit Current Rating
- Single or double set screw termination
- Color-coding provides fast and easy phase identification
Specifications
- Warranty: NA
- Color: Green
- Cable Range: 2/0-4/0 AWG
- Connection Type: Double Set Screw
- Max. Voltage: 600 Volt
- Country of Origin: Mexico
- Style Name: 90-Degree
- Component: Receptacle
- Max. Amperage: 400 Amp
- Series: 18
- Standards and Certifications: UL/CSA
- Gender: Female
- RoHS Compliant: TRUE
Specs
–
| Country of Origin: | Mexico |
|---|---|
| Connection Type: | Female |
| Voltage: | 600V |
| Amperage: | 400 |
| Color: | Green |
