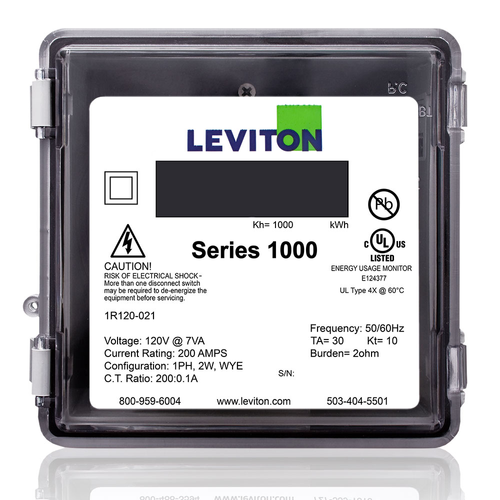

Submeter, Outdoor, 120v, 1 Phase 2 Wire, Max 200a, Single Element, Electric Meter
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$589.47 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
200 Amps
5 years Warranty
Description
–
Features
Specifications
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Utilizes revenue-grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
- Interfaces with numerous communication systems Hardwired Automatic Meter Reading (AMR) or wireless AMR
- UL/cUL Listed for UL 916 Energy Monitoring Equipment
- Five year warranty
- Conforms to all applicable standards of ANSI C12.1
- Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
- The Leviton VerifEye Series 1000 line of revenue-grade submeters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 1000 submeters are easy to specify and install for new construction and retrofits. Do you have a question about submetering? Contact us to learn more.
- Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
- Measures kWh and demand (optional)
- Equipped with an Isolated Pulse Output channel
- Load Indicator LED verifies meter functionality
- Reverse Phase Indicator LED illuminates if the meter is improperly installed
Specifications
- Application: Electric/electrical/electricity submetering|Load profiling and benchmarking|Usage Aggregation|Tenant cost allocation|Measurement and verification|Energy conservation|Cost reduction|Green building initiatives|Government mandates|LEED achievement
- Product Type: Electric Submeter
- Meter Configuration: Single Meter
- Warranty: 5-Year Limited
- CTs Included: No - Submeter Only
- Amperage: 200 A
- Communication: Pulse Output
- Voltage: 120 VAC 1PH 2W
- Enclosure: Outdoor (NEMA 4X)
- Country of Origin: United States
- Product Line: Series 1000
- RoHS Compliant: FALSE
Specs
–
| Amperage: | 200 |
|---|---|
| Warranty: | 5 years |
