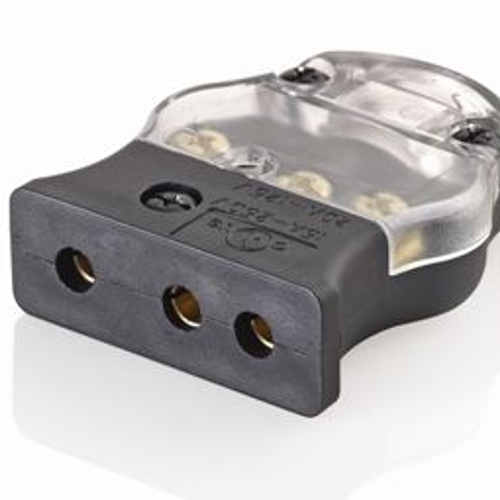

Main product image of 20A, 125V 2-pole, 3-wire, Stage Pin Female Connector Set Screw Terminals (Black) w/ Clear Cover
Magnifying glass
Hover image to zoom

20A, 125V 2-pole, 3-wire, Stage Pin Female Connector Set Screw Terminals (Black) w/ Clear Cover

Brand:
Leviton
SKU:
20FP-CL
Rating:
(0)
Q&A:
(0)
20A, 125V 2-pole, 3-wire, Stage Pin Female Connector Set Screw Terminals (Black) w/ Clear Cover
Magnifying glass
Hover image to zoom
$16.43 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Clear
Product Highlight: Warranty
2 years Warranty
Product Highlight: Material
Polyester Resin, PBT
Product Highlight: Amperage
20 Amps

Description

–
Features
  • Leviton's 20 Amp Stage Pin Connectors are user-friendly, durable and safe. The ergonomic profile fits comfortably in your hand, making it much easier to assemble and disassemble. This results in reduced fatigue for both the assembler and the user who frequently connects and disconnects cable assemblies. The unique profile also increases safety, as it is less likely to get entangled with other equipment. The strain relief system offers 30% more gripping power than the competitors offering, reducing the chance of personal injury or property damage that results when cables are accidentally stripped from their connectors under load. The additional strain relief power also helps extend cable assembly life, saving you time and money over its lifetime.

Specifications
  • Contacts: Solid Brass
  • Pole: 2
  • UL: Listed
  • Maximum Working Voltage: 125V as rated
  • Amperage: 20 A
  • Terminal Accom.: 12-16 AWG
  • Voltage: 125 VAC
  • Body Material: PBT Thermoplastic polyester resin
  • Terminal Cover Material: Polycarbonate
  • Current Interrupting: Certified for current interrupting at full rated current
  • Assembly Screws: Hardened Steel
  • Color: Clear
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Product ID: Rating Molded into Body
  • Grounding: Grounding
  • Country of Origin: China
  • Operating Temperature: -20 �°C to 105 �°C
  • RoHS Compliant: TRUE
  • Temperature Rise: Max 30C at 150 cycles OL at 150 pct rated current
  • Warranty: 2-Year Limited
  • Terminal Screws: Brass 8-32
  • Flammability: UL94V-2
  • Device Type: Connector
  • Terminal ID: H-Hot, N-Neutral, G-Ground

Specs

–
Color:

Clear

Warranty:

2 years

Ground:

Grounding

Material:

Polyester Resin

PBT

Poles:

2

Amperage:

20

Product Type:

Connector
