$148.97 each
Out of Stock
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
Description
–
Features
Specifications

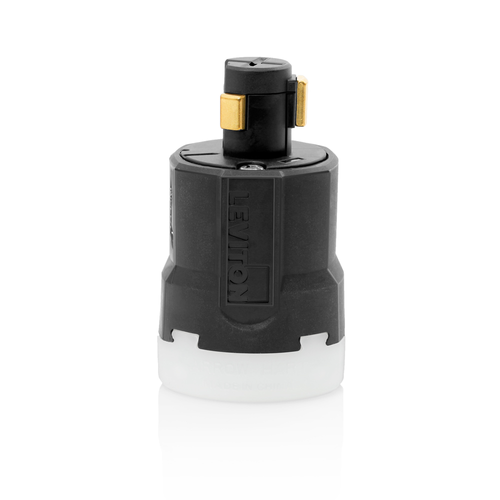

- Leviton's Power Interrupting line of industrial and hospital grade plugs, connectors and flush receptacles provide a reliable solution while increasing safety and reducing the likelihood of equipment damage.
Specifications
- Current Interrupting: Certified for current interrupting at full rated current
- Product ID: Ratings are permanently marked on device
- cULus: Listed
- Body Material: Super Tough Nylon
- Pole: 3
- Terminal Accom.: 12-4 AWG
- Flammability: Rated V-0 per UL 94
- Grounding: Grounding
- Standards and Certifications: UL
- Amperage: 20 A
- Operating Temperature: -40 °C to 105 °C
- Dielectric Voltage: Withstands 2000V per UL498
- Environment: Dry
- Wire Gauge: 18-10 AWG
- Assembly Screws: Steel, Zinc Plated
- Country of Origin: Mexico
- Blades/Contacts: Solid Brass
- Cord Range: .250 - .656
- RoHS Compliant: FALSE
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Cord-Clamp: Nylon
- Wire: 3
- Line Contacts: Brass
- Interior Material: Phenolic
- Terminal Screws: Brass 8-32
- Feature: Power Interrupting
- UL: 498
- Grounding Screw: Brass 8-32
- Voltage: 125 VAC
Specs
–
| Amperage: | 20 |
|---|---|
| Ground: | Grounding |
| Country of Origin: | Mexico |
| Poles: | 3 |
