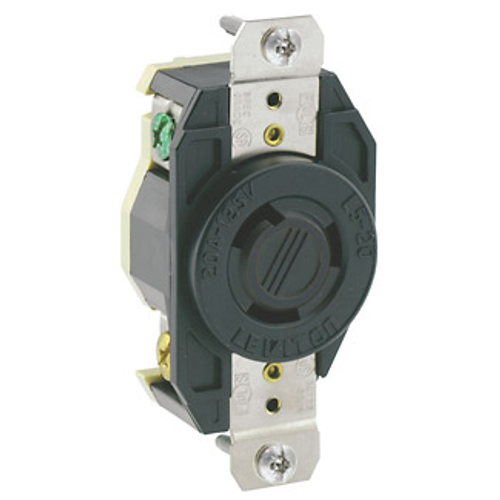

20A, 125V NEMA L5-20R, 2P, 3W, Flush Mtg Locking Receptacle, Grounding, All Black (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$15.36 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Black
Lifetime Limited Warranty
20 Amps
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L5-20R
Specifications
- Strap Material: Nickel-Plated Brass
- Screw Terminal Torque: 14-18 in-lbs
- Line Contacts: Brass .040 Thick
- NEMA: WD-6
- NOM: 57
- Product ID: Ratings and NEMA I.D. permanently marked on device
- ANSI: C-73
- Flammability: Rated V-0 per UL 94
- Horsepower Rating: 1 HP
- CSA C22.2 No. 42: File LR-406
- Brand: V-0-Max
- Color: Black
- Face Material: Ultramid
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws: Brass 10-32
- Pole: 2
- Operating Temperature: -40 °C to 60 °C
- Yoke: Nickel-Plated Brass .050 Thick
- Device Type: Locking Receptacle
- Country of Origin: Mexico
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Current Limiting: Full Rated Current
- Warranty: Limited Lifetime Warranty
- Dielectric Voltage: Withstands 2000V per UL498
- UL Fed Spec WC-596: File E13399
- Terminal Accom.: 14-8 AWG
- Grounding: Grounding
- Grounding Screw: Brass 8-32
- Environment: Corrosive
- UL498: File E13399
- Voltage: 125 VAC
- Amperage: 20 A
- Termination: Back & Side
- Wire: 3
- RoHS Compliant: TRUE
- Base Material: Valox
Specs
–
| Ground: | Grounding |
|---|---|
| Terminations: | Back Wire Side Wire |
| Product Type: | Locking Receptacle |
| Country of Origin: | Mexico |
| Poles: | 2 |
| Color: | Black |
| NEMA Rating: | WD-6 |
| Series: | V-0-Max |
| Warranty: | Lifetime Limited |
| Amperage: | 20 |
