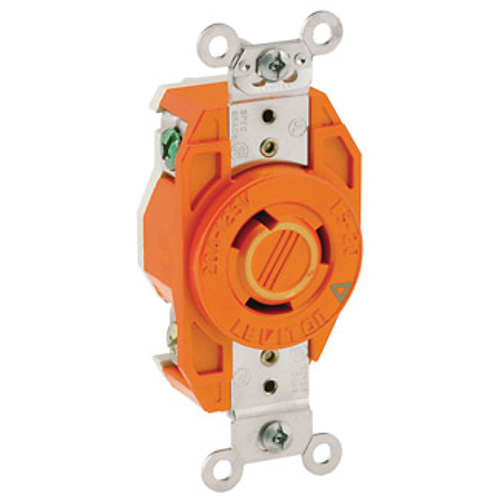

20A, 125V NEMA L5-20R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.43 each
In Stock
Get 6 Wed, Jul 8
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
Lifetime Limited Warranty
Orange
Valox 357
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L5-20R
Specifications
- Cover Material: Valox 357
- Country of Origin: Mexico
- Wire: 3
- Brand: V-0-Max
- Face Material: Valox
- Environment: Corrosive
- UL Fed Spec WC-596: File E13399
- Color: Orange
- Warranty: Limited Lifetime Warranty
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Dielectric Voltage: Withstands 2000V per UL498
- Grounding: Isolated Ground
- Current Limiting: Full Rated Current
- Pole: 2
- Ground Contacts: Brass
- Termination: Back & Side
- Amperage: 20 A
- Ground Clips: Nickel-Plated Brass
- CSA: C22.2 No. 42
- Line Contacts: Brass
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Voltage: 125 VAC
- UL: 498
- Grounding Screw: Brass 8-32
- ANSI: C-73
- Terminal Screws: Brass 10-32
- Strap Material: Nickel-Plated Brass
- Body Material: Valox 357
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- NEMA: WD-1 & WD-6
- Screw Terminal Torque: 14-18 in-lbs
- Operating Temperature: -40 °C to 60 °C
- RoHS Compliant: TRUE
- Flammability: Rated V-0 per UL 94
- NOM: 57
- Feature: Isolated Ground
- Terminal Accom.: 14-8 AWG
Specs
–
| Poles: | 2 |
|---|---|
| Series: | V-0-Max |
| Country of Origin: | Mexico |
| NEMA Rating: | WD-1 |
| Ground: | Isolated Ground |
| Amperage: | 20 |
| Terminations: | Back Wire Side Wire |
| Warranty: | Lifetime Limited |
| Color: | Orange |
| Material: | Valox 357 |
