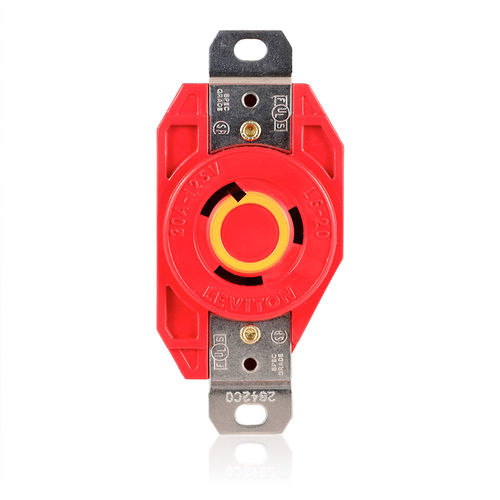

20A, 125V NEMA L5-20R, 2P, 3W, Flush Mtg Locking Receptacle, Grounding, V-0-MAX, RED
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$15.37 each
In Stock
Get 10 Mon, Jun 22
Order by today, receive Monday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
Lifetime Limited Warranty
Red
Description
–
Features
Specifications
- Extra thick, corrosion resistant nickel plated brass strap
- Terminal identification molded into the body lasts longer than stamping
- Nickel plated brass clamp type terminals support back and side wiring and resist corrosion
- Color-coded voltage ID ring on face for quick visual identification
- Single piece brass contact provides longer life and continuous conductivity vs multi-piece riveted styles
- L5-20R
- Amperage, voltage, NEMA configuration, and Manufacturer molded into face lasts longer than stamping and makes for fast, easy identification and replacement
- UL V-0 flammability rating
Specifications
- Pole: 2
- Terminal Screws: Nickel-Plated Brass
- Grounding: Grounding
- Wire: 3
- Operating Temperature: -40 °C to 60 °C
- Brand: V-0-Max
- Dielectric Voltage: Withstands 2000V per UL498
- Amperage: 20 A
- Termination: Back
- Voltage: 125 VAC
- UL: 498
- Grounding Screw: Chromated Brass
- NEMA: WD-1 & WD-6
- CSA: C22.2 No. 42
- ANSI: C-73
- Warranty: Limited Lifetime Warranty
- Country of Origin: Mexico
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Terminal ID: Marked on Device
- Strap Material: Nickel-Plated Brass
- Flammability: Rated V-0 per UL 94
- Color: Red
- Terminal Clamps: Zinc-Plated Brass
- Face Material: Nylon
- Line Contacts: Nickel-Plated Brass
- Terminal Accom.: 14-8 AWG
- Base Material: Nylon
- RoHS Compliant: TRUE
- UL Fed Spec: W-C-596
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Current Limiting: Full Rated Current
- Body Material: Valox 357
- Screw Terminal Torque: 14-18 in-lbs
- NOM: 57
- Ground Contacts: Nickel-Plated Brass
- Cover Material: Valox 357
Specs
–
| Series: | V-0-Max |
|---|---|
| Amperage: | 20 |
| Poles: | 2 |
| Ground: | Grounding |
| Terminations: | Back Wire |
| Country of Origin: | Mexico |
| Warranty: | Lifetime Limited |
| Color: | Red |
| NEMA Rating: | WD-1 |
