Product Highlights
–
20 Amps
Black
Lifetime Limited Warranty
Nylon
Description
–
Features
Specifications

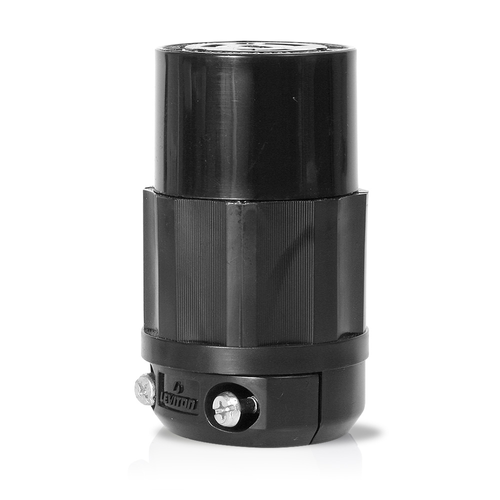

- L5-20R
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Unique cord clamp accepts wide range of cord sizes
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- Industry exclusive limited lifetime warranty
Specifications
- NEMA: WD-6
- Cord Range: 0.385 to 0.720
- Flammability: Rated HB or better UL94
- Terminal Screws: Brass
- Country of Origin: Mexico
- Terminal Accom.: 18-10 AWG
- Wire Gauge: 16-10 AWG
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- ANSI: C-73
- Blades/Contacts: Solid Brass
- Product ID: Ratings are permanently marked on device
- NOM: 57
- UL Fed Spec WC-596: File E13393
- Operating Temperature: -40 °C to 60 °C
- Environment: Dry
- UL498: File E13393
- Wire: 3
- Horsepower Rating: 1 HP
- Brand: Black and White
- Warranty: Limited Lifetime Warranty
- Body Material: Impact Modified Nylon
- CSA C22.2 No. 42: File LR-406
- Wire Module: Nylon
- Cord-Clamp: Nylon
- Voltage: 125 VAC
- Grounding: Grounding
- Current Interrupting: Certified for current interrupting at full rated current
- Pole: 2
- RoHS Compliant: TRUE
- Dielectric Voltage: Withstands 2000V per UL498
- Assembly Screws: Steel, Zinc Plated
- Clamp Insert: Nylon
- Color: Black
- Amperage: 20 A
- Back Cover: Thermoplastic
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Specs
–
| Amperage: | 20 |
|---|---|
| Series: | Black & White |
| Color: | Black |
| NEMA Rating: | WD-6 |
| Warranty: | Lifetime Limited |
| Country of Origin: | Mexico |
| Material: | Nylon |
| Ground: | Grounding |
| Poles: | 2 |
