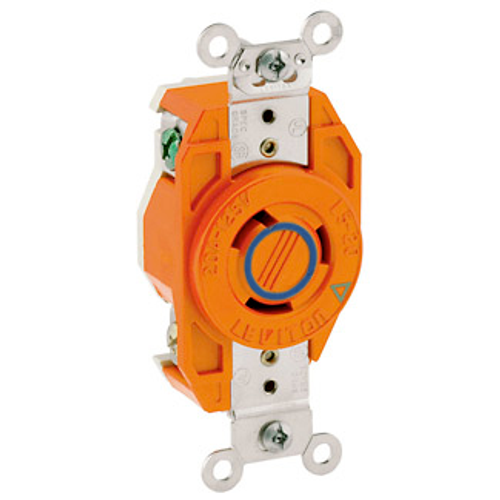

20A, 250V NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$19.16 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Lifetime Limited Warranty
Orange
20 Amps
Description
–
Features
Specifications
- L6-20R
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Warranty: Limited Lifetime Warranty
- Screw Terminal Torque: 14-18 in-lbs
- Amperage: 20 A
- Operating Temperature: -40 °C to 60 °C
- Base Material: Valox
- Brand: V-0-Max
- Horsepower Rating: 2 HP
- Termination: Back & Side
- Country of Origin: Mexico
- Wire: 3
- Line Contacts: Brass
- Terminal Screws: Chromated Brass
- ANSI: C-73
- Dielectric Voltage: Withstands 2000V per UL498
- Body Material: Valox 357
- Environment: Corrosive
- Flammability: Rated V-0 per UL 94
- CSA: C22.2 No. 42
- Current Limiting: Full Rated Current
- RoHS Compliant: TRUE
- Torque Range: 14-16 in-lbs
- NEMA: WD-1 & WD-6
- Strap Material: Nickel-Plated Brass
- NOM: 57
- Ground Contacts: Brass
- Terminal Accom.: 14-8 AWG
- Ground Clips: Nickel-Plated Brass
- Face Material: Valox
- UL: 498
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Voltage: 250 VAC
- Grounding Screw: Chromated Brass
- Terminal ID: Marked on Device
- Cover Material: Valox 357
- Grounding: Isolated Ground
- Pole: 2
- Color: Orange
Specs
–
| Warranty: | Lifetime Limited |
|---|---|
| Ground: | Isolated Ground |
| Terminations: | Back Wire Side Wire |
| Country of Origin: | Mexico |
| NEMA Rating: | WD-1 |
| Poles: | 2 |
| Series: | V-0-Max |
| Color: | Orange |
| Amperage: | 20 |
