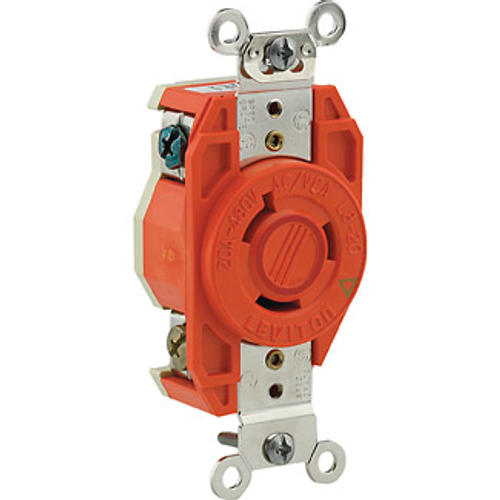

Main product image of 20A, 480V NEMA L8-20R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom

20A, 480V NEMA L8-20R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)

Brand:
Leviton
SKU:
2340-IG
Rating:
(0)
Q&A:
(0)
20A, 480V NEMA L8-20R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom
$20.20 each
Out of Stock
Out of Stock
Get it Fri, Oct 16 - Fri, Oct 23
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Material
Valox 357
Product Highlight: Color
Orange
Product Highlight: Warranty
Lifetime Limited Warranty

Description

–
Features
  • L8-20R
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Specifications
  • Brand: V-0-Max
  • Termination: Back & Side
  • Environment: Corrosive
  • Color: Orange
  • Face Material: Valox
  • Terminal Screws: Chromated Brass
  • Flammability: Rated V-0 per UL 94
  • Grounding Screw: Chromated Brass
  • Ground Contacts: Brass
  • Feature: Isolated Ground
  • ANSI: C-73
  • RoHS Compliant: TRUE
  • UL: 498
  • Screw Terminal Torque: 14-18 in-lbs
  • Cover Material: Valox 357
  • Line Contacts: Brass
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Ground Clips: Nickel-Plated Brass
  • Warranty: Limited Lifetime Warranty
  • NEMA: WD-1 & WD-6
  • Terminal ID: Marked on Device
  • CSA: C22.2 No. 42
  • Operating Temperature: -40 °C to 60 °C
  • UL Fed Spec: W-C-596
  • Strap Material: Nickel-Plated Brass
  • Body Material: Valox 357
  • Terminal Clamps: Zinc-Plated Brass
  • Base Material: Valox
  • NOM: 57
  • Terminal Accom.: 14-8 AWG
  • Country of Origin: Mexico

Specs

–
Terminations:

Back Wire

Side Wire

Material:

Valox 357

Country of Origin:

Mexico

NEMA Rating:

WD-1

Series:

V-0-Max

Color:

Orange

Warranty:

Lifetime Limited
