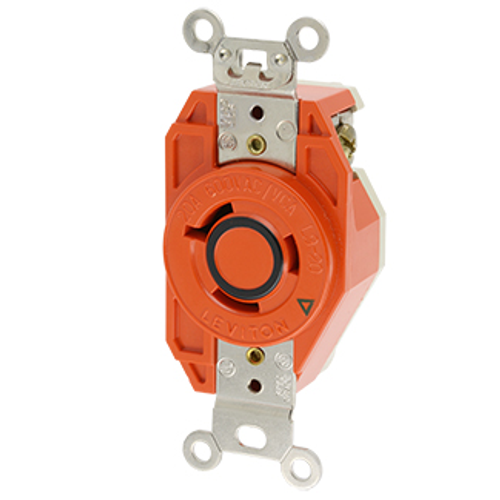

20A, 600V NEMA L9-20R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$22.67 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Lifetime Limited Warranty
20 Amps
Valox 357
Orange
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L9-20R
Specifications
- CSA: C22.2 No. 42
- Terminal ID: Marked on Device
- Country of Origin: Mexico
- Line Contacts: Brass
- Ground Clips: Nickel-Plated Brass
- Base Material: Valox
- Dielectric Voltage: Withstands 2000V per UL498
- Voltage: 600 VAC
- Screw Terminal Torque: 14-18 in-lbs
- Wire: 3
- Ground Contacts: Brass
- Body Material: Valox 357
- NOM: 57
- UL Fed Spec: W-C-596
- Terminal Screws: Chromated Brass
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- ANSI: C-73
- Pole: 2
- Color: Orange
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Amperage: 20 A
- Feature: Isolated Ground
- Cover Material: Valox 357
- RoHS Compliant: TRUE
- Brand: V-0-Max
- NEMA: WD-1 & WD-6
- Face Material: Valox
- Termination: Back & Side
- Environment: Corrosive
- Terminal Clamps: Zinc-Plated Brass
- Grounding: Isolated Ground
- Current Limiting: Full Rated Current
- Terminal Accom.: 14-8 AWG
- Flammability: Rated V-0 per UL 94
- Operating Temperature: -40 °C to 60 °C
- Grounding Screw: Chromated Brass
- Warranty: Limited Lifetime Warranty
- Strap Material: Nickel-Plated Brass
- UL: 498
Specs
–
| Warranty: | Lifetime Limited |
|---|---|
| Amperage: | 20 |
| Material: | Valox 357 |
| Country of Origin: | Mexico |
| Terminations: | Side Wire Back Wire |
| Color: | Orange |
| Ground: | Isolated Ground |
| NEMA Rating: | WD-1 |
| Series: | V-0-Max |
| Poles: | 2 |
