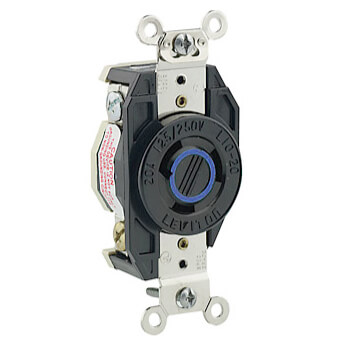

Industrial Grade Locking Receptacle, 20A, 3P, NEMA L11-20R - Black (250V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

20 Amp, 250 Volt 3-Phase, NEMA L11-20R, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Leviton V-0-MAX™ 3-Pole 3-Wire Locking receptacle in black color has ultramid face and nylon body for durability. It has voltage rating of 250 Volts, current rating of 20 Amps and can withstand 2000 Volts of dielectric voltage. The 3-Phase receptacle has power rating of 2 hp at line-line and 2 hp at line-neutral. Industrial grade receptacle is flush mounting type. Non-grounded receptacle has operating temperature of -40 to 60 deg C. It has back/side wired termination and can accommodate wires of size 14 - 8 AWG. It has nickel-plated brass strap and terminal clamp for mounting. Receptacle is resistant to chemical and impact. Receptacle has chromate brass/brass 10-32 terminal screws and chromate brass/brass 8-32 grounding screw for easy installation. It has UL94 V-0 flammability rating to withstand hazardous environmental conditions. It measures 1.690 Inch x 1.310 Inch x 3.630 Inch. Receptacle has 0.040-Inch thick line contacts and ground contacts made of corrosion resistant brass. It has NEMA rating of L11-20R. Receptacle is UL listed.

Features:

• AC Horsepower Rating: 3HP
• Amperage: 20 A
• Non-Grounding
• Phase: 3-Phase
• Pole: 3
• Voltage: 250 VAC
• Wire: 3
• Color: Black

Standards and Certifications:

• ANSI: C-73
• CSA: C22.2 No. 42
• NEMA: WD-1 & WD-6
• NOM: 057
• UL: 498
• UL Fed Spec: W-C-596
