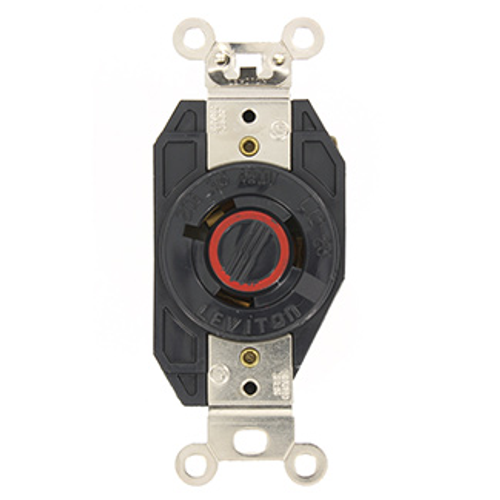

20A, 480V 3-Phase, NEMA L12-20R, 3P, 3W, Flush Mtg Locking Receptacle, Non-Grounding (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.38 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
- Wire: 3
- Termination: Back & Side
- Country of Origin: Mexico
- NEMA: WD-1 & WD-6
- Current Limiting: Full Rated Current
- Dielectric Voltage: Withstands 2000V per UL498
- Flammability: Rated V-0 per UL 94
- Terminal Clamps: Nickel-Plated Brass
- Color: Black
- Brand: V-0-Max
- Device Type: Locking Receptacle
- Ground Contacts: Brass
- RoHS Compliant: FALSE
- Warranty: Limited Lifetime Warranty
- UL: 498
- Operating Temperature: -40 °C to 60 °C
- Phase: 3-Phase
- Amperage: 20 A
- Strap Material: Nickel-Plated Brass
- Cover Material: Valox 357
- CSA: C22.2 No. 42
- Terminal ID: Marked on Device
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- UL Fed Spec: W-C-596
- Screw Terminal Torque: 14-18 in-lbs
- ANSI: C-73
- At Rated Voltage: 5 HP
- NOM: 57
- Grounding Screw: Chromated Brass
- Face Material: Nylon
- Base Material: Nylon
- Body Material: Nylon
- Environment: Corrosive
- Terminal Screws: Chromated Brass
- Terminal Accom.: 14-8 AWG
- Grounding: Non-Grounding
- Line Contacts: Brass
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Voltage: 480 VAC
- Pole: 3
Specs
–
| Country of Origin: | Mexico |
|---|
