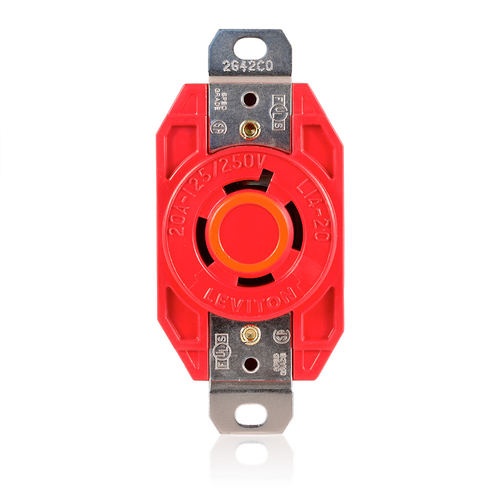

20A, 125/250V NEMA L14-20R, 3P, 4W, Flush Mtg Locking Receptacle, Grounding (Red)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.05 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Red
Lifetime Limited Warranty
20 Amps
Description
–
Features
Specifications
- Single piece brass contact provides longer life and continuous conductivity vs multi-piece riveted styles
- Amperage, voltage, NEMA configuration, and Manufacturer molded into face lasts longer than stamping and makes for fast, easy identification and replacement
- Terminal identification molded into the body lasts longer than stamping
- L14-20R
- Color-coded voltage ID ring on face for quick visual identification
- Nickel plated brass clamp type terminals support back and side wiring and resist corrosion
- Extra thick, corrosion resistant nickel plated brass strap
- UL V-0 flammability rating
Specifications
- NEMA: WD-1 & WD-6
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Termination: Back
- NOM: 57
- Grounding Screw: Chromated Brass
- Grounding: Grounding
- Warranty: Limited Lifetime Warranty
- Dielectric Voltage: Withstands 2000V per UL498
- Pole: 3
- Strap Material: Nickel-Plated Brass
- Wire: 4
- Body Material: Valox 357
- Terminal ID: Marked on Device
- Face Material: Nylon
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Voltage: 125/250 VAC
- Color: Red
- Operating Temperature: -40 °C to 60 °C
- UL Fed Spec: W-C-596
- Terminal Screws: Nickel-Plated Brass
- Current Limiting: Full Rated Current
- Screw Terminal Torque: 14-18 in-lbs
- Base Material: Nylon
- Flammability: Rated V-0 per UL 94
- Amperage: 20 A
- Terminal Clamps: Zinc-Plated Brass
- Brand: V-0-Max
- ANSI: C-73
- Ground Contacts: Nickel-Plated Brass
- Line Contacts: Nickel-Plated Brass
- Country of Origin: Mexico
- CSA: C22.2 No. 42
- RoHS Compliant: TRUE
- UL: 498
- Cover Material: Valox 357
- Terminal Accom.: 14-8 AWG
Specs
–
| Series: | V-0-Max |
|---|---|
| Country of Origin: | Mexico |
| Color: | Red |
| Poles: | 3 |
| Warranty: | Lifetime Limited |
| NEMA Rating: | WD-1 |
| Ground: | Grounding |
| Terminations: | Back Wire |
| Amperage: | 20 |
