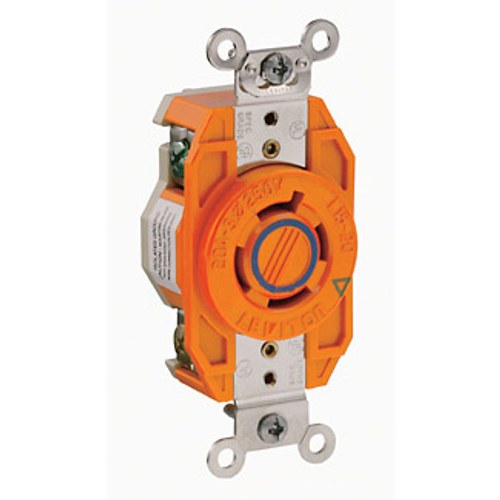

20A, 250V 3-Phase, NEMA L15-20R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$25.86 each
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Orange
20 Amps
Lifetime Limited Warranty
Valox 357
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L15-20R
Specifications
- Cover Material: Valox 357
- Grounding Screw: Chromated Brass
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Current Limiting: Full Rated Current
- CSA: C22.2 No. 42
- Grounding: Isolated Ground
- Strap Material: Nickel-Plated Brass
- Face Material: Valox
- Phase: 3-Phase
- Brand: V-0-Max
- RoHS Compliant: TRUE
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Voltage: 250 VAC
- Base Material: Valox
- NEMA: WD-1 & WD-6
- Country of Origin: Mexico
- Feature: Isolated Ground
- Flammability: Rated V-0 per UL 94
- Color: Orange
- Terminal ID: Marked on Device
- Environment: Corrosive
- Wire: 4
- Terminal Clamps: Zinc-Plated Brass
- Terminal Screws: Chromated Brass
- Body Material: Valox 357
- Screw Terminal Torque: 14-18 in-lbs
- Operating Temperature: -40 °C to 60 °C
- Pole: 3
- UL Fed Spec: W-C-596
- ANSI: C-73
- Ground Clips: Nickel-Plated Brass
- Dielectric Voltage: Withstands 2000V per UL498
- Termination: Back & Side
- Amperage: 20 A
- NOM: 57
- Warranty: Limited Lifetime Warranty
- Line Contacts: Brass
- Terminal Accom.: 14-8 AWG
- UL: 498
- Ground Contacts: Brass
Specs
–
| Color: | Orange |
|---|---|
| Terminations: | Side Wire Back Wire |
| Series: | V-0-Max |
| Amperage: | 20 |
| Ground: | Isolated Ground |
| Poles: | 3 |
| NEMA Rating: | WD-1 |
| Warranty: | Lifetime Limited |
| Material: | Valox 357 |
| Country of Origin: | Mexico |
