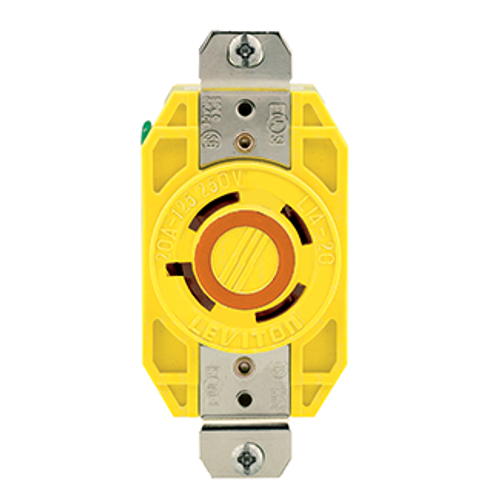

Main product image of 20A, 125 V/250V NEMA L14-20r, 3p, 4w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)
Magnifying glass
Hover image to zoom

20A, 125 V/250V NEMA L14-20r, 3p, 4w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)

Brand:
Leviton
SKU:
24CM-10
Rating:
(0)
Q&A:
(0)
20A, 125 V/250V NEMA L14-20r, 3p, 4w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)
Magnifying glass
Hover image to zoom
$26.29 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Yellow
Product Highlight: Amperage
20 Amps
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Material
Valox 357

Description

–
Features
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • L14-20R

Specifications
  • Body Material: Valox 357
  • Terminal ID: Marked on Device
  • Terminal Screws: Nickel-Plated Brass
  • Pole: 3
  • Flammability: Rated V-0 per UL 94
  • Country of Origin: Mexico
  • Screw Terminal Torque: 10-14 in-lbs
  • Grounding Screw: Chromated Brass
  • Current Limiting: Full Rated Current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • UL Fed Spec: W-C-596
  • Ground Contacts: Nickel-Plated Brass
  • Wire: 4
  • Strap Material: Nickel-Plated Brass
  • Grounding: Grounding
  • ANSI: C-73
  • Warranty: Limited Lifetime Warranty
  • Environment: Corrosive
  • Face Material: Nylon
  • Operating Temperature: -40 °C to 60 °C
  • Line Contacts: Nickel-Plated Brass
  • Cover Material: Valox 357
  • Dielectric Voltage: Withstands 2000V per UL498
  • Brand: V-0-Max
  • Terminal Clamps: Nickel-Plated Brass
  • Terminal Accom.: 14-8 AWG
  • NEMA: WD-1 & WD-6
  • Termination: Back
  • UL: 498
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • At Rated Voltage: 2 HP L-L/1 HP L-N
  • CSA: C22.2 No. 42
  • Warranty: Limited Lifetime Warranty
  • NOM: 57
  • Voltage: 125/250 VAC
  • RoHS Compliant: TRUE
  • Base Material: Nylon
  • Color: Yellow
  • Amperage: 20 A

Specs

–
NEMA Rating:

WD-1

Ground:

Grounding

Color:

Yellow

Country of Origin:

Mexico

Amperage:

20

Series:

V-0-Max

Terminations:

Back Wire

Warranty:

Lifetime Limited

Poles:

3

Material:

Valox 357
