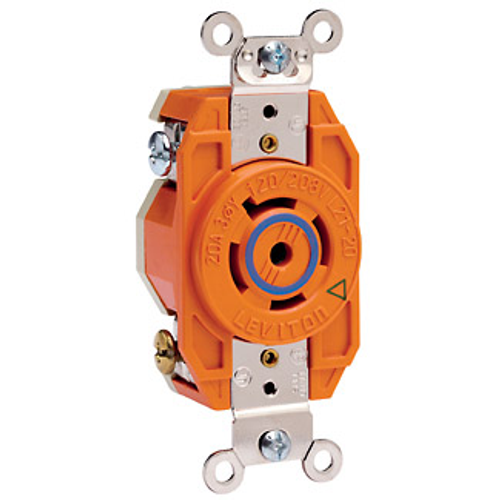

Main product image of 20A, 120/208V 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom

20A, 120/208V 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)

Brand:
Leviton
SKU:
2510-IG
Rating:
(0)
Q&A:
(0)
20A, 120/208V 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom
$28.80 each
In Stock
In Stock
Get 8 Tue, Oct 6
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Orange
Product Highlight: Amperage
20 Amps
Product Highlight: Material
Valox 357
Product Highlight: Warranty
Lifetime Limited Warranty

Description

–
Features
  • L21-20R
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Specifications
  • Country of Origin: Mexico
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Grounding: Isolated Ground
  • UL Fed Spec: W-C-596
  • Dielectric Voltage: Withstands 2000V per UL498
  • Amperage: 20 A
  • Body Material: Valox 357
  • Face Material: Nylon
  • Grounding Screw: Chromated Brass
  • ANSI: C-73
  • Warranty: Limited Lifetime Warranty
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal ID: Marked on Device
  • Base Material: Nylon
  • Line Contacts: Brass
  • Strap Material: Nickel-Plated Brass
  • Current Limiting: Full Rated Current
  • Color: Orange
  • Termination: Back & Side
  • Cover Material: Valox 357
  • Terminal Accom.: 14-8 AWG
  • Environment: Corrosive
  • Screw Terminal Torque: 14-18 in-lbs
  • Warranty: Limited Lifetime Warranty
  • RoHS Compliant: TRUE
  • CSA: C22.2 No. 42
  • Operating Temperature: -40 °C to 60 °C
  • UL: 498
  • Voltage: 120/208 VAC
  • Ground Contacts: Brass
  • Phase: 3-Phase WYE
  • NOM: 57
  • Feature: Isolated Ground
  • Terminal Screws: Chromated Brass
  • NEMA: WD-1 & WD-6
  • Flammability: Rated V-0 per UL 94
  • Ground Clips: Nickel-Plated Brass
  • Pole: 4
  • Brand: V-0-Max
  • Clamp Nuts: Nickel-Plated Brass
  • Wire: 5
  • Terminal Clamps: Zinc-Plated Brass

Specs

–
Terminations:

Side Wire

Back Wire

Series:

V-0-Max

Color:

Orange

Amperage:

20

Ground:

Isolated Ground

Material:

Valox 357

Poles:

4

NEMA Rating:

WD-1

Warranty:

Lifetime Limited

Country of Origin:

Mexico
