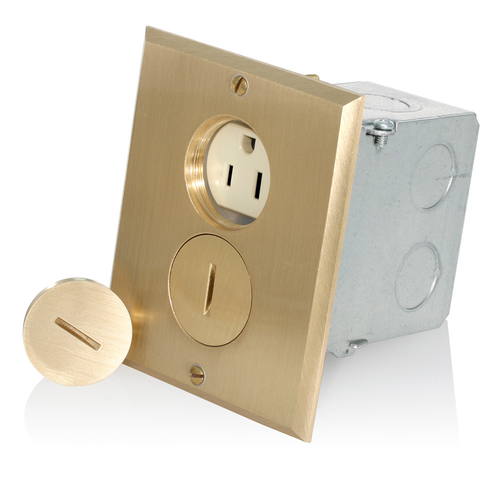

15A 1-Gang Floor Box Assembly, Commercial Grade, Self-grounding
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$99.99 each
In Stock
Get 13 Wed, Jul 8
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Nylon
15 Amps
Ivory
Description
–
Features
Specifications
- 5-15R
- For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Specifications
- NEMA: WD-1 & WD-6
- Line Contacts: Brass Triple-Wipe .031 Thick
- Product ID: Ratings are permanently marked on device
- Country of Origin: Mexico
- Face Material: Nylon
- RoHS Compliant: FALSE
- Dielectric Voltage: Withstands 2000V per UL498
- Flammability: Rated V-2 per UL 94
- Clamp Nuts: Zinc-Plated Steel
- Certification/Listing: cCSAus, NOM-ANCE
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Strap Material: Zinc-Plated Steel
- Wire: 3
- Terminal Accom.: 14-10 AWG
- Terminal Screws: Brass 8-32
- Applicable Standards: UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
- Termination: Back & Side
- Body Material: Nylon
- ANSI: C-73
- Floorplate Material: Solid Brass 0.060 In Thick
- Ground Clips: Brass-Plated
- Pole: 2
- Current Limiting: Full Rated Current
- Grounding: Self Grounding
- Amperage: 15 A
- At Rated Voltage: 1/2 HP
- Operating Temperature: -40 °C to 60 °C
- Voltage: 125 VAC
- Grounding Screw: Brass 8-32
- Color: Ivory
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Type: Wood Frame
Specs
–
| Material: | Nylon |
|---|---|
| NEMA Rating: | WD-1 |
| Country of Origin: | Mexico |
| Amperage: | 15 |
| Terminations: | Side Wire Back Wire |
| Color: | Ivory |
| Ground: | Self-Grounding |
| Poles: | 2 |
