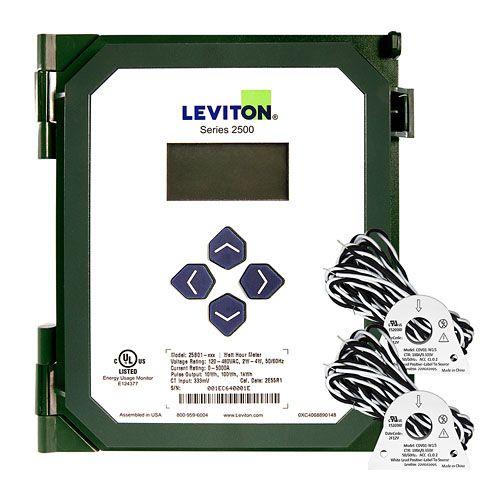

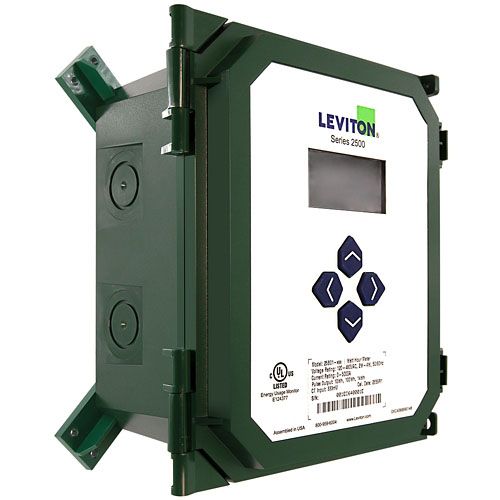

VerifEye Series 2500, Submeter, Indoor/Outdoor, 120/208v or 277/480v, 3 Phase, 100a, 2 Solid Core Current Transformers, Electric Meter Kit

The VerifEye Series 2500 Submeter is a versatile energy monitoring platform designed for standalone operations and integration with AMR/BAS systems with an onboard pulse output and RS-485 terminals supporting Modbus RTU. Engineered for simplicity and scalability, the Series 2500 is ideal for a wide range of applications-including energy management, code compliance reporting, and tenant billing-all with a single model. Installation is fast and straightforward, featuring tool-free, WAGO_ connectors*. This field-programmable meter has a user-friendly LCD setup wizard and built-in diagnostic icons that help verify proper wiring and outdoor environments, offering flexible mounting options and tamper-resistant features. Housed in a NEMA 3R enclosure, the Series 2500 is suitable for both indoor and outdoor use.

Features:

• One model for 1P/2W, 2P/3W, 3P/4W (WYE), 120-480VAC
• Solid core CTs (100A & 200A)
• Split core CTs (100A to 800A)
• Meets ANSI C12 metering accuracy requirements
• Meets NEMA SM 31000 standards
• Alarms for undervoltage, overvoltage, overcurrent, power factor, and reverse energy to aid with troubleshooting
• Flush mount kit for neat and unobtrusive installation aesthetics
• Limited 5-year warranty

Installation Features:

• Easy access terminals for CT wiring with WAGO connectors
• User friendly LCD front panel interface with 4-button navigation
• Configuration wizard for guided initial meter setup

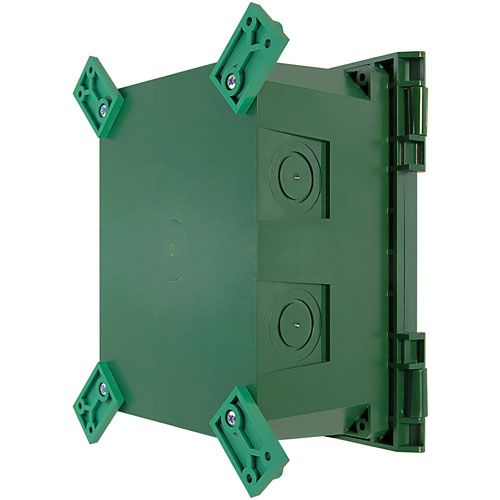

• Multiple marked conduit entry locations around the meter housing
• Built-in diagnostic icons
