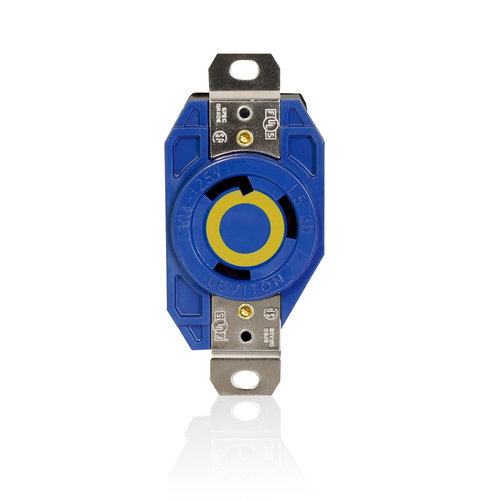

30A, 125V NEMA L5-30R, 2P, 3W, Flush Mtg Locking Receptacle, Grounding, V-0-MAX (Blue)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.28 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Blue
30 Amps
Lifetime Limited Warranty
Description
–
Features
Specifications
- L5-30R
Specifications
- Terminal Accom.: 14-8 AWG
- Color: Blue
- Warranty: Limited Lifetime Warranty
- Screw Terminal Torque: 14-18 in-lbs
- Flammability: Rated V-0 per UL 94
- Line Contacts: Brass
- Terminal ID: Marked on Device
- Pole: 2
- Torque Range: 14-16 in-lbs
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Country of Origin: Mexico
- UL: 498
- RoHS Compliant: TRUE
- Face Material: Valox
- NOM: 57
- Grounding: Isolated Ground
- Termination: Back & Side
- Voltage: 125 VAC
- Base Material: Valox
- Screw Terminal Torque: 14-18 in-lbs
- Ground Contacts: Brass
- Operating Temperature: -40 °C to 60 °C
- Current Limiting: Full Rated Current
- NEMA: WD-1 & WD-6
- ANSI: C-73
- Strap Material: Nickel-Plated Brass
- Body Material: Valox 357
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- CSA: C22.2 No. 42
- Terminal Clamps: Zinc-Plated Brass
- Cover Material: Valox 357
- Terminal Screws: Chromated Brass
- Dielectric Voltage: Withstands 2000V per UL498
- Wire: 3
- Amperage: 30 A
Specs
–
| Color: | Blue |
|---|---|
| Country of Origin: | Mexico |
| Amperage: | 30 |
| Ground: | Isolated Ground |
| NEMA Rating: | WD-1 |
| Warranty: | Lifetime Limited |
| Terminations: | Side Wire Back Wire |
| Poles: | 2 |
