$20.41 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Lifetime Limited Warranty
Yellow, White
30 Amps
Nylon
Description
–
Features
Specifications
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- Industry exclusive limited lifetime warranty
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use

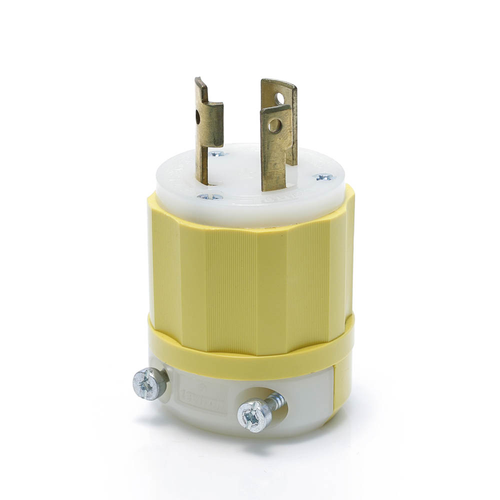

- L5-30P
- Unique cord clamp accepts wide range of cord sizes
Specifications
- Warranty: Limited Lifetime Warranty Warranty
- Operating Temperature: -40 °C to 60 °C
- At Rated Voltage: 2 HP
- Wire Module: Nylon
- Product ID: Ratings are permanently marked on device
- Environment: Dry
- Back Cover: Thermoplastic
- Wire Gauge: 16-8 AWG
- Cord-Clamp: Nylon
- Terminal Accom.: 18-10 AWG
- Cord Range: .385 - .930
- Brand: Black and White
- RoHS Compliant: TRUE
- Voltage: 125 VAC
- Color: Yellow-White
- NEMA: WD-6
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Blades/Contacts: Solid Brass
- UL498: File E13393
- NOM: 57
- Terminal Screws: Brass
- Current Interrupting: Certified for current interrupting at full rated current
- CSA C22.2 No. 42: File LR-406
- Assembly Screws: Steel, Zinc Plated
- Country of Origin: Mexico
- Amperage: 30 A
- Grounding: Grounding
- Flammability: Rated HB or better UL94
- Wire: 3
- UL Fed Spec WC-596: File E13393
- ANSI: C-73
- Pole: 2
- Dielectric Voltage: Withstands 2000V per UL498
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Body Material: Impact Modified Nylon
- Clamp Insert: Nylon
Specs
–
| Poles: | 2 |
|---|---|
| Ground: | Grounding |
| Warranty: | Lifetime Limited |
| Country of Origin: | Mexico |
| Series: | Black & White |
| NEMA Rating: | WD-6 |
| Color: | Yellow White |
| Amperage: | 30 |
| Material: | Nylon |
