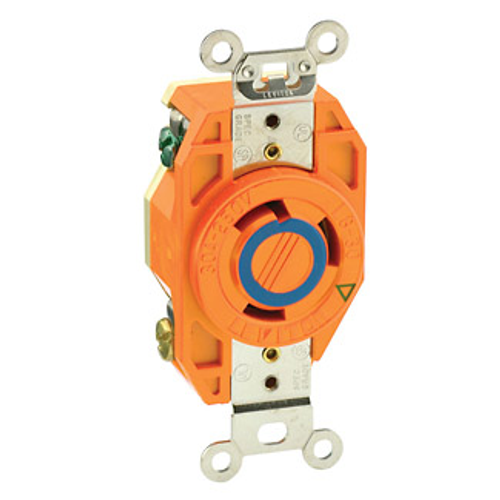

30A, 250V NEMA L6-30R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$26.76 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
30 Amps
Valox 357
Lifetime Limited Warranty
Orange
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L6-30R
Specifications
- Warranty: Limited Lifetime Warranty
- Country of Origin: Mexico
- Ground Contacts: Brass
- Screw Terminal Torque: 14-18 in-lbs
- Environment: Corrosive
- NOM: 57
- Voltage: 250 VAC
- ANSI: C-73
- Current Limiting: Full Rated Current
- Color: Orange
- Body Material: Valox 357
- Face Material: Valox
- Base Material: Valox
- Grounding: Isolated Ground
- Brand: V-0-Max
- Dielectric Voltage: Withstands 2000V per UL498
- At Rated Voltage: 2 HP
- Wire: 3
- Terminal Screws: Chromated Brass
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- RoHS Compliant: TRUE
- Feature: Isolated Ground
- CSA: C22.2 No. 42
- Flammability: Rated V-0 per UL 94
- Strap Material: Nickel-Plated Brass
- Terminal Accom.: 14-8 AWG
- Terminal Clamps: Zinc-Plated Brass
- Line Contacts: Brass
- Amperage: 30 A
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Terminal ID: Marked on Device
- Operating Temperature: -40 °C to 60 °C
- UL Fed Spec: W-C-596
- NEMA: WD-1 & WD-6
- UL: 498
- Termination: Back & Side
- Pole: 2
- Grounding Screw: Chromated Brass
- Ground Clips: Nickel-Plated Brass
- Cover Material: Valox 357
- Torque Range: 14-16 in-lbs
Specs
–
| Amperage: | 30 |
|---|---|
| Poles: | 2 |
| Series: | V-0-Max |
| Material: | Valox 357 |
| Warranty: | Lifetime Limited |
| Ground: | Isolated Ground |
| Terminations: | Side Wire Back Wire |
| Country of Origin: | Mexico |
| Color: | Orange |
| NEMA Rating: | WD-1 |
