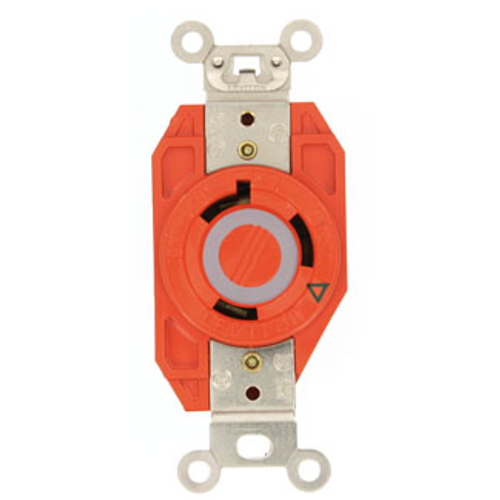

30A, 277V NEMA L7-30R, 2P, 3W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$27.39 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
30 Amps
Lifetime Limited Warranty
Valox 357
Orange
Description
–
Features
Specifications
- L7-30R
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
- Country of Origin: Mexico
- Color: Orange
- Terminal Screws: Chromated Brass
- Face Material: Valox
- RoHS Compliant: FALSE
- Wire: 3
- Screw Terminal Torque: 14-18 in-lbs
- At Rated Voltage: 3 HP
- Base Material: Valox
- Current Limiting: Full Rated Current
- Feature: Isolated Ground
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Brand: V-0-Max
- UL: 498
- NEMA: WD-1 & WD-6
- Warranty: Limited Lifetime Warranty
- Environment: Corrosive
- UL Fed Spec: W-C-596
- Terminal ID: Marked on Device
- Terminal Accom.: 14-8 AWG
- Termination: Back & Side
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Amperage: 30 A
- Ground Contacts: Brass
- Voltage: 277 VAC
- Terminal Clamps: Zinc-Plated Brass
- Cover Material: Valox 357
- Line Contacts: Brass
- Flammability: Rated V-0 per UL 94
- Pole: 2
- Operating Temperature: -40 °C to 60 °C
- CSA: C22.2 No. 42
- Dielectric Voltage: Withstands 2000V per UL498
- Body Material: Valox 357
- Grounding Screw: Chromated Brass
- Strap Material: Nickel-Plated Brass
- NOM: 57
- ANSI: C-73
- Ground Clips: Nickel-Plated Brass
- Grounding: Isolated Ground
Specs
–
| Amperage: | 30 |
|---|---|
| Poles: | 2 |
| Terminations: | Side Wire Back Wire |
| Series: | V-0-Max |
| Ground: | Isolated Ground |
| Country of Origin: | Mexico |
| Warranty: | Lifetime Limited |
| Material: | Valox 357 |
| NEMA Rating: | WD-1 |
| Color: | Orange |
