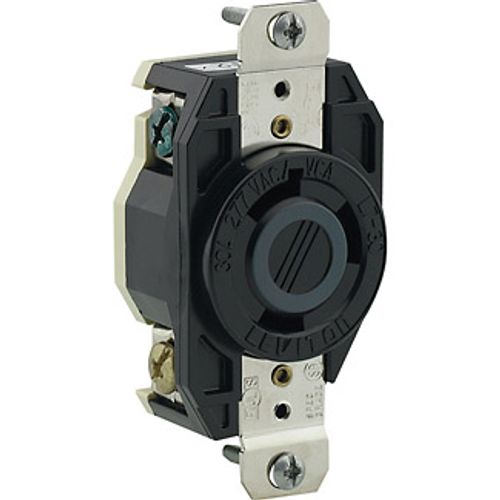

30A, 277V NEMA L7-30R, 2P, 3W, Flush Mtg Locking Receptacle, Grounding, V-0-MAX (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$23.35 each
Out of Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L7-30R
Specifications
- Grounding: Grounding
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Terminal Screws: Chromated Brass
- Country of Origin: Mexico
- RoHS Compliant: TRUE
- Ground Contacts: Brass
- Terminal Accom.: 14-8 AWG
- Screw Terminal Torque: 14-18 in-lbs
- Wire: 3
- Terminal Clamps: Nickel-Plated Brass
- Warranty: Limited Lifetime Warranty
- Dielectric Voltage: Withstands 2000V per UL498
- Device Type: Locking Receptacle
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Operating Temperature: -40 °C to 60 °C
- ANSI: C-73
- Termination: Back & Side
- Brand: V-0-Max
- Voltage: 277 VAC
- Strap Material: Nickel-Plated Brass
- UL: 498
- Environment: Corrosive
- Amperage: 30 A
- Base Material: Valox
- Cover Material: Valox 357
- UL Fed Spec: W-C-596
- CSA: C22.2 No. 42
- Terminal ID: Marked on Device
- Color: Black
- Current Limiting: Full Rated Current
- Grounding Screw: Chromated Brass
- Line Contacts: Brass
- Flammability: Rated V-0 per UL 94
- Face Material: Ultramid
- NEMA: WD-1 & WD-6
- Pole: 2
- NOM: 57
- Body Material: Nylon
Specs
–
| Country of Origin: | Mexico |
|---|
