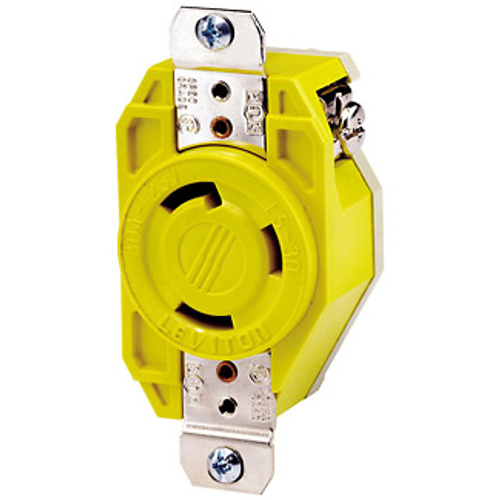

Main product image of 30A, 125V NEMA L5-30R, 2P, 3W, Flush Mtg Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)
Magnifying glass
Hover image to zoom

30A, 125V NEMA L5-30R, 2P, 3W, Flush Mtg Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)

Brand:
Leviton
SKU:
26CM-10
Rating:
(0)
Q&A:
(0)
30A, 125V NEMA L5-30R, 2P, 3W, Flush Mtg Locking Receptacle, Grounding, Corrosion-Resistant (Yellow)
Magnifying glass
Hover image to zoom
$27.57 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Color
Yellow
Product Highlight: Amperage
30 Amps
Product Highlight: Material
Valox 357

Description

–
Features
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • L5-30R

Specifications
  • Screw Terminal Torque: 14-18 in-lbs
  • Wire: 3
  • ANSI: C-73
  • Line Contacts: Nickel-Plated Brass
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • NEMA: WD-1 & WD-6
  • NOM: 57
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Cover Material: Valox 357
  • Face Material: Nylon
  • Country of Origin: Mexico
  • Grounding: Grounding
  • Terminal ID: Marked on Device
  • Color: Yellow
  • Ground Contacts: Nickel-Plated Brass
  • Strap Material: Nickel-Plated Brass
  • Grounding Screw: Chromated Brass
  • Voltage: 125 VAC
  • UL: 498
  • Terminal Screws: Nickel-Plated Brass
  • CSA: C22.2 No. 42
  • Base Material: Nylon
  • Amperage: 30 A
  • Dielectric Voltage: Withstands 2000V per UL498
  • RoHS Compliant: FALSE
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Clamps: Nickel-Plated Brass
  • Environment: Corrosive
  • Terminal Accom.: 14-8 AWG
  • Warranty: Limited Lifetime Warranty
  • Body Material: Valox 357
  • At Rated Voltage: 2 HP
  • UL Fed Spec: W-C-596
  • Flammability: Rated V-0 per UL 94
  • Brand: V-0-Max
  • Operating Temperature: -40 °C to 60 °C
  • Termination: Back

Specs

–
Warranty:

Lifetime Limited

Terminations:

Back Wire

Series:

V-0-Max

Color:

Yellow

Ground:

Grounding

Country of Origin:

Mexico

NEMA Rating:

WD-1

Amperage:

30

Poles:

2

Material:

Valox 357
