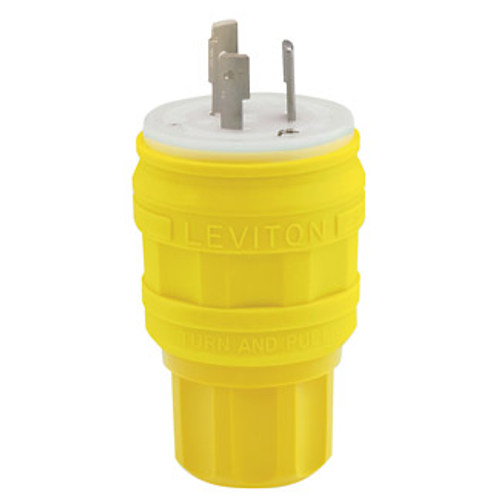

20A, 125V NEMA L5-20P, 2P, 3W, Locking Plug, Grounding, Wetguard (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$57.11 each
Out of Stock
Get it Tue, Jun 23 - Tue, Jun 30
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Lifetime Limited Warranty
20 Amps
EPTR Rubber
Yellow
Description
–
Features
Specifications
- THE BRAND YOU TRUST- Backed by a lifetime warranty
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
- L5-20P
Specifications
- IP Rating: IP66, IP67, IP69K
- NEMA: WD-6
- UL: 498
- Standards and Certifications: UL/CSA
- Grounding: Grounding
- Blades/Contacts: Nickel-Plated Brass
- Clamps: Electroless Nickel-coated Brass
- Voltage: 125 VAC
- Color: Yellow
- Torque Range: 12-14 in-lbs
- NOM: 57
- Warranty: Limited Lifetime Warranty Warranty
- Cord Range: 0.375 to 0.875
- Assembly Screws: Stainless Steel 300
- Environment: Wet
- Dielectric Voltage: Withstands 2000V per UL498
- CSA C22.2 No. 42: File LR-406
- RoHS Compliant: TRUE
- Operating Temperature: -40 °C to 60 °C
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Terminal Accom.: #16 to #10
- ANSI: C-73
- Current Limiting: Full Rated Current
- Brand: Wetguard
- Wire: 3
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Body Material: EPTR Rubber
- Amperage: 20 A
- Country of Origin: Mexico
- Body Interior: Nylon
- Wire Module: Nylon
- Bushing: Santoprene TPV
- Device Type: Locking Plug
- Compression Nut, Strain Relief: Nylon
- Terminal Screws: Electroless Nickel-coated Brass
- Pole: 2
- Flammability: Rated V-2 per UL 94
Specs
–
| Warranty: | Lifetime Limited |
|---|---|
| Product Type: | Locking Plug |
| Amperage: | 20 |
| Series: | Wetguard |
| Ground: | Grounding |
| NEMA Rating: | WD-6 |
| Country of Origin: | Mexico |
| Material: | EPTR Rubber |
| Poles: | 2 |
| Color: | Yellow |
