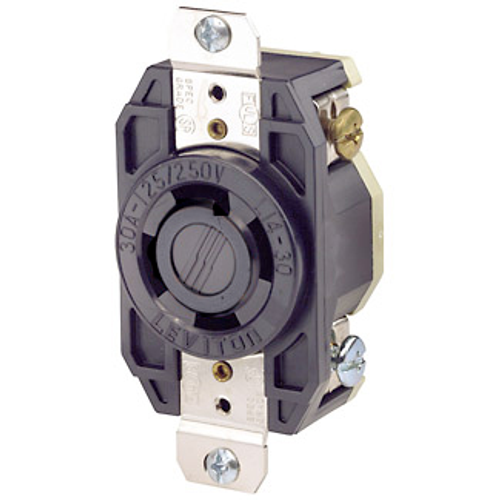

Main product image of 30A, 125/250V NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Grounding, All Black (Black)
Magnifying glass
Hover image to zoom

30A, 125/250V NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Grounding, All Black (Black)

Brand:
Leviton
SKU:
2710-B
Rating:
(0)
Q&A:
(0)
30A, 125/250V NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Grounding, All Black (Black)
Magnifying glass
Hover image to zoom
$31.19 each
In Stock
In Stock
Get 9 Tue, Jul 14
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Amperage
30 Amps
Product Highlight: Color
Black

Description

–
Features
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • L14-30R

Specifications
  • RoHS Compliant: TRUE
  • NOM: 57
  • Color: Black
  • Terminal Screws: Brass 10-32
  • Current Limiting: Full Rated Current
  • Base Material: Valox
  • Voltage: 125/250 VAC
  • Pole: 3
  • Strap Material: Nickel-Plated Brass
  • Brand: V-0-Max
  • Wire: 4
  • Country of Origin: Mexico
  • Line Contacts: Brass .040 Thick
  • Grounding: Grounding
  • Amperage: 30 A
  • UL498: File E13399
  • Grounding Screw: Brass 8-32
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • NEMA: WD-6
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Dielectric Voltage: Withstands 2000V per UL498
  • Terminal Accom.: 14-8 AWG
  • Warranty: Limited Lifetime Warranty Warranty
  • Device Type: Locking Receptacle
  • Screw Terminal Torque: 14-18 in-lbs
  • Face Material: Ultramid
  • ANSI: C-73
  • Termination: Back & Side
  • UL Fed Spec WC-596: File E13399
  • Environment: Corrosive
  • Yoke: Nickel-Plated Brass .050 Thick
  • CSA C22.2 No. 42: File LR-406
  • Operating Temperature: -40 °C to 60 °C
  • Flammability: Rated V-0 per UL 94
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • At Rated Voltage: 2 HP L-L/2 HP L-N

Specs

–
Warranty:

Lifetime Limited

Amperage:

30

Color:

Black

Terminations:

Back Wire

Side Wire

Ground:

Grounding

Country of Origin:

Mexico

Poles:

3

NEMA Rating:

WD-6

Product Type:

Locking Receptacle

Series:

V-0-Max
