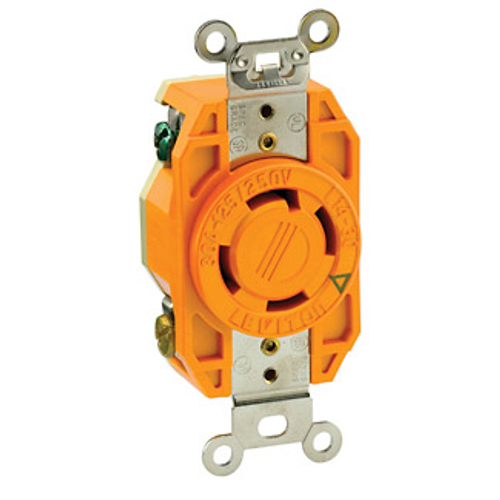

Main product image of 30A, 125/250V NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom

30A, 125/250V NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)

Brand:
Leviton
SKU:
2710-IG
Rating:
(0)
Q&A:
(0)
30A, 125/250V NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom
$37.50 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Orange
Product Highlight: Amperage
30 Amps
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Material
Valox 357

Description

–
Features
  • L14-30R
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Specifications
  • Base Material: Valox
  • UL Fed Spec: W-C-596
  • Warranty: Limited Lifetime Warranty
  • Brand: V-0-Max
  • Ground Clips: Nickel-Plated Brass
  • Face Material: Valox
  • Cover Material: Valox 357
  • Voltage: 125/250 VAC
  • Ground Contacts: Brass
  • Termination: Back & Side
  • Grounding: Isolated Ground
  • Grounding Screw: Chromated Brass
  • Pole: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • CSA: C22.2 No. 42
  • Color: Orange
  • Feature: Isolated Ground
  • Terminal Clamps: Zinc-Plated Brass
  • NOM: 57
  • RoHS Compliant: TRUE
  • ANSI: C-73
  • Amperage: 30 A
  • NEMA: WD-1 & WD-6
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Country of Origin: Mexico
  • Terminal Accom.: 14-8 AWG
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Body Material: Valox 357
  • Terminal Screws: Chromated Brass
  • Operating Temperature: -40 °C to 60 °C
  • Environment: Corrosive
  • Line Contacts: Brass
  • Current Limiting: Full Rated Current
  • Device Type: Locking Receptacle
  • Terminal ID: Marked on Device
  • Flammability: Rated V-0 per UL 94
  • Wire: 4
  • UL: 498
  • Screw Terminal Torque: 14-18 in-lbs
  • Strap Material: Nickel-Plated Brass

Specs

–
Poles:

3

Product Type:

Locking Receptacle

Terminations:

Back Wire

Side Wire

Series:

V-0-Max

Color:

Orange

NEMA Rating:

WD-1

Amperage:

30

Warranty:

Lifetime Limited

Ground:

Isolated Ground

Material:

Valox 357

Country of Origin:

Mexico
