$18.93 each
In Stock
Get 11 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Black
Nylon
30 Amps
Lifetime Limited Warranty
Description
–
Features
Specifications
- One piece contacts reduce friction and overheating
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use

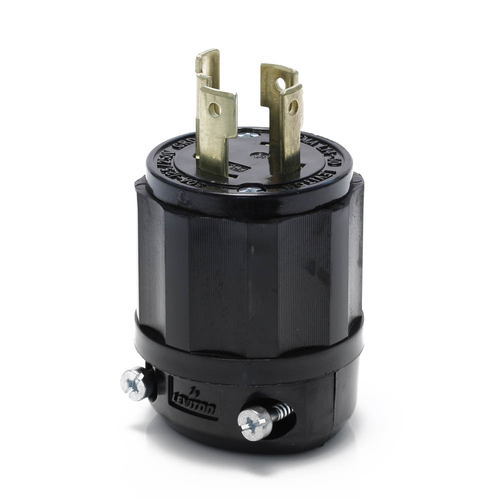

- L14-30P
- Industry exclusive limited lifetime warranty
- Unique cord clamp accepts wide range of cord sizes
Specifications
- Terminal Accom.: 14-8 AWG
- Blades/Contacts: Solid Brass
- At Rated Voltage: 2 HP L-L/2 HP L-N
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Amperage: 30 A
- ANSI: C-73
- Current Interrupting: Certified for current interrupting at full rated current
- Flammability: Rated HB or better UL94
- Grounding: Grounding
- Country of Origin: Mexico
- Brand: Black and White
- CSA C22.2 No. 42: File LR-406
- Terminal Screws: Brass
- Product ID: Ratings are permanently marked on device
- Device Type: Locking Plug
- Voltage: 125/250 VAC
- Dielectric Voltage: Withstands 2000V per UL498
- RoHS Compliant: TRUE
- Cord-Clamp: Nylon
- Back Cover: Thermoplastic
- Wire Module: Nylon
- Clamp Insert: Nylon
- UL Fed Spec WC-596: File E13393
- Body Material: Impact Modified Nylon
- UL498: File E13393
- Color: Black
- NEMA: WD-6
- Operating Temperature: -40 °C to 60 °C
- Pole: 3
- Environment: Dry
- NOM: 57
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Warranty: Limited Lifetime Warranty
- Cord Range: .595 - 1.150
- Assembly Screws: Steel, Zinc Plated
- Wire: 4
Specs
–
| Color: | Black |
|---|---|
| Material: | Nylon |
| NEMA Rating: | WD-6 |
| Amperage: | 30 |
| Series: | Black & White |
| Product Type: | Locking Plug |
| Poles: | 3 |
| Ground: | Grounding |
| Warranty: | Lifetime Limited |
| Country of Origin: | Mexico |
