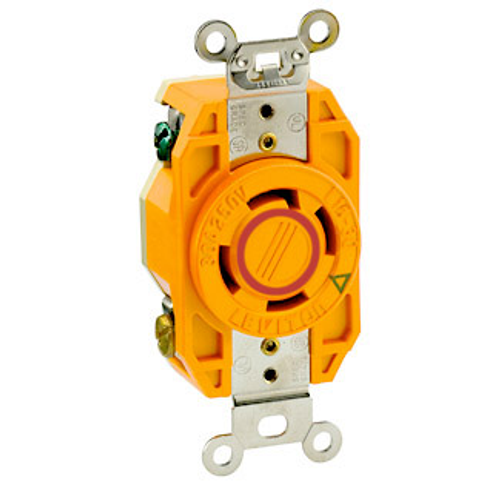

Main product image of 30A, 250V 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom

30A, 250V 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)

Brand:
Leviton
SKU:
2720-IG
Rating:
(0)
Q&A:
(0)
30A, 250V 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
Magnifying glass
Hover image to zoom
$45.41 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
Lifetime Limited Warranty
Product Highlight: Amperage
30 Amps
Product Highlight: Material
Valox 357
Product Highlight: Color
Orange

Description

–
Features
  • Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • L15-30R

Specifications
  • Country of Origin: Mexico
  • Grounding: Isolated Ground
  • RoHS Compliant: TRUE
  • Base Material: Valox
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Ground Contacts: Brass
  • Environment: Corrosive
  • UL: 498
  • Phase: 3-Phase
  • Terminal Clamps: Zinc-Plated Brass
  • UL Fed Spec: W-C-596
  • NEMA: WD-1 & WD-6
  • Flammability: Rated V-0 per UL 94
  • Feature: Isolated Ground
  • Body Material: Valox 357
  • CSA: C22.2 No. 42
  • Pole: 3
  • Ground Clips: Nickel-Plated Brass
  • NOM: 57
  • Grounding Screw: Chromated Brass
  • Strap Material: Nickel-Plated Brass
  • Wire: 4
  • Screw Terminal Torque: 14-18 in-lbs
  • Terminal Accom.: 14-8 AWG
  • Brand: V-0-Max
  • Warranty: Limited Lifetime Warranty
  • Terminal Screws: Chromated Brass
  • Terminal ID: Marked on Device
  • Termination: Back & Side
  • Line Contacts: Brass
  • Color: Orange
  • Operating Temperature: -40 °C to 60 °C
  • Voltage: 250 VAC
  • Dielectric Voltage: Withstands 2000V per UL498
  • Amperage: 30 A
  • Current Limiting: Full Rated Current
  • Face Material: Valox
  • ANSI: C-73
  • Cover Material: Valox 357
  • Product ID: Ratings and NEMA I.D. permanently marked on device

Specs

–
Poles:

3

Ground:

Isolated Ground

NEMA Rating:

WD-1

Warranty:

Lifetime Limited

Series:

V-0-Max

Amperage:

30

Terminations:

Back Wire

Side Wire

Material:

Valox 357

Color:

Orange

Country of Origin:

Mexico
