Description

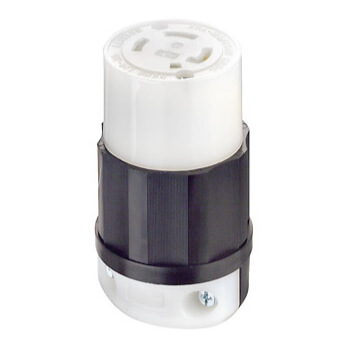

30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Locking Connector, Industrial Grade, Grounding - Black-White
Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty

Leviton Black & White® 3-Pole Grounding female twist lock connector in black/white color is made of impact-modified nylon with a thermoplastic back cover for durability. It has wire module, cord-clamp, clamp insert made of nylon that provides positive crimp lock without cutting wire strand. Grounded connector has four-wire circuitry. It measures 2.220 Inch bottom diameter x 1.970 Inch top diameter x 3.780 Inch. It has voltage rating of 250 Volts and current rating of 30 Amps. It can withstand 2000 Volts dielectric voltage. It operates at temperature range of -40 to 60 deg C. It has a power rating of 3 hp. Connector has blades/contacts and terminal screws made of solid brass for superior conductivity. It has assembly screws made of zinc-plated steel that offers rust free surface. Connectors are used for industrial applications. It is UL94HB flammability rated to withstand hazardous environmental conditions. It has NEMA rating of L15-30R. Connector is UL listed and is CSA/Anis/NOM certified.

Features:
  • AC Horsepower Rating: 3 HP
  • Amperage: 30 A
  • Grounding: Grounding
  • Pole: 3
  • Voltage: 250 VAC
  • Wire: 4
  • Phase: 3
  • Operating Temperature: -40°C to 60°C
  • Wire Gauge: 14-8 AWG
  • Color: Black-White
  • Device Type: Locking Connector
  • NEMA: L15-30R


Standards and Certifications:
  • ANSI: C-73
  • CSA C22.2 No. 42: File LR-406
  • NEMA: WD-6
  • NOM: 057
  • UL Fed Spec WC-596: File E13393
  • UL498: File E13393
Hide Description
Specs
Voltage:

250v

Poles:

3

Type:

Locking Connector

Color:

White

Black

Horse Power:

3

NEMA Rating:

L15-30R

Material:

Nylon

Ground:

Grounding

Amperage:

30

Grade:

Industrial

Phase:

3

×
