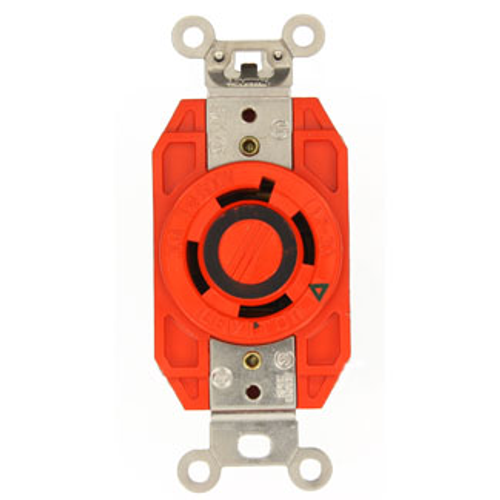

30A, 600V 3-Phase, NEMA L17-30R, 3P, 4W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$33.09 each
In Stock
Get 4 Wed, Jul 8
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Valox 357
Orange
Lifetime Limited Warranty
30 Amps
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L17-30R
Specifications
- Current Limiting: Full Rated Current
- ANSI: C-73
- Environment: Corrosive
- UL Fed Spec: W-C-596
- Grounding Screw: Brass
- Feature: Isolated Ground
- Phase: 3-Phase
- Face Material: Valox
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Terminal Clamps: Zinc-Plated Brass
- Strap Material: Nickel-Plated Brass
- CSA: C22.2 No. 42
- Screw Terminal Torque: 14-18 in-lbs
- Cover Material: Valox 357
- Termination: Back & Side
- Warranty: Limited Lifetime Warranty
- Base Material: Valox
- Ground Contacts: Brass
- Flammability: Rated V-0 per UL 94
- Color: Orange
- Voltage: 600 VAC
- Dielectric Voltage: Withstands 2000V per UL498
- Line Contacts: Brass
- Body Material: Valox 357
- NEMA: WD-1 & WD-6
- Terminal ID: Marked on Device
- Pole: 3
- Wire: 4
- Country of Origin: Mexico
- UL: 498
- Product ID: Ratings and NEMA I.D. permanently marked on device
- NOM: 57
- RoHS Compliant: FALSE
- Terminal Screws: Chromated Brass
- Brand: V-0-Max
- Operating Temperature: -40 °C to 60 °C
- Amperage: 30 A
- Terminal Accom.: 14-8 AWG
- Grounding: Isolated Ground
- Ground Clips: Nickel-Plated Brass
Specs
–
| Ground: | Isolated Ground |
|---|---|
| Terminations: | Side Wire Back Wire |
| Material: | Valox 357 |
| Color: | Orange |
| Warranty: | Lifetime Limited |
| Series: | V-0-Max |
| Amperage: | 30 |
| Country of Origin: | Mexico |
| Poles: | 3 |
| NEMA Rating: | WD-1 |
