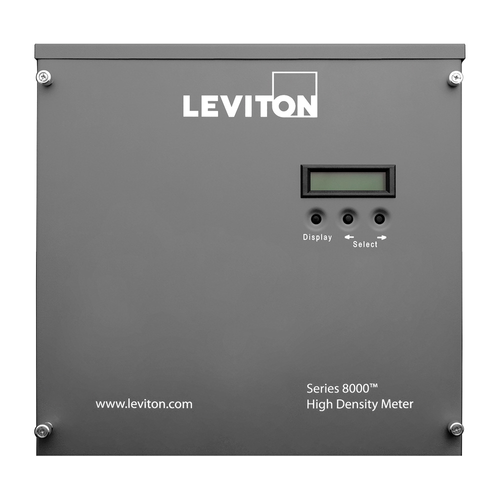

Submeter, Indoor, 277/480v, Phase Config 8x3, 12x2, 24x1 w/ Wiring Harness, Electric Meter, Multiple Point High Density Smart Meter
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5,329.86 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5 years Warranty
Description
–
Features
Specifications
- Provides multiple electric loads in one device
- 100 - 5,000 amp current transformers
- Monitors up to 24 current transformers - 8 (3) phase, 12 (2) phase or 24 single phase loads
- ModBus TCP, ModBus RTU (RS-485) and BACnet IP standard feature
- Multiple point meter-installation and hardware-savings
- Interval and net metering
- Can monitor as low as 2A
- Configurable via Ethernet or simple ModBus RTU network to BMS or VerifEye software solutions for tenant billing or measurement & verification (M&V)
- The VerifEye Series 8000 Multiple Point Submeters are designed to meter multi-tenant office buildings, medium-sized retail, institutional, multi-tenant residential and other high density applications. VerifEye Series 8000 submeters provide twenty-four meter elements that can be configured as any combination of 1 phase, 2 phase or 3 phase meters or monitors. Do you have a question about submetering? Contact us to learn more.
- Building automation integration and tenant metering
- Measures kilowatt hours, kW demand, volts, amps
Specifications
- Altitude: 9843 ft (3000m) maximum
- Warranty: 5-Year Limited
- Enclosure: Indoor
- Country of Origin: Canada
- Meter Configuration: Branch Circuit Monitor
- Listings: (EMC): FCC Part 15 Class A, ICES-003, IEC6100-4-5, TUV and UL certified to IEC/EA/UL/CSA - 61010-1 2nd Edition CSA-C22.2 No. 61010-1-04, ANSI/C12.20 0.5 Class, California Weights and Measures Approved
- Product Type: Electric Submeter
- Operating Temperature: -40 °C to 70 °C
- CTs Included: No - Submeter Only
- Weight: 14 lbs (6.35kg), 21 lbs (9.52Kg)
- Application: Multi-tenant office buildings|Medium-sized retail|Institutional|Multi-tenant residential and other high density applications
- Ports: Single 10/100BASE-T Ethernet, RS-232
- Product Line: Series 8000
- Protocol: ModBus TCP/IP, DHCP, HTTP, PPP, SNTP, FTP, ModBus TCP, ModBus RTU (RS-485), BACnet IP
- Operating Humidity: 0 to 90% non-condensing
- Dimensions: 13(33cm) Height x 11.8 �(16.9 �) (30.5 cm) Width x 2(5cm) Depth
- RoHS Compliant: FALSE
- Voltage: 277/480 VAC
Specs
–
| Warranty: | 5 years |
|---|---|
| Country of Origin: | Canada |
