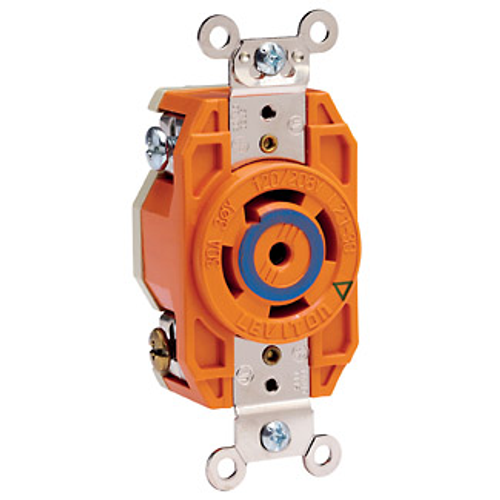

30A, 120/208V 3-Phase Y, NEMA L21-30R, 4P, 5W, Flush Mtg Locking Receptacle, Isolated Ground, V-0-MAX (Orange)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$39.21 each
In Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Lifetime Limited Warranty
30 Amps
Orange
Valox 357
Description
–
Features
Specifications
- Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- L21-30R
Specifications
- Line Contacts: Brass
- Dielectric Voltage: Withstands 2000V per UL498
- Body Material: Valox 357
- Face Material: Nylon
- Environment: Corrosive
- Ground Contacts: Brass
- Brand: V-0-Max
- UL: 498
- CSA: C22.2 No. 42
- NOM: 57
- Ground Clips: Nickel-Plated Brass
- Strap Material: Nickel-Plated Brass
- Terminal Accom.: 14-8 AWG
- Terminal ID: Marked on Device
- Country of Origin: Mexico
- Terminal Screws: Chromated Brass
- Color: Orange
- Pole: 4
- Operating Temperature: -40 °C to 60 °C
- RoHS Compliant: TRUE
- Current Limiting: Full Rated Current
- Terminal Clamps: Zinc-Plated Brass
- UL Fed Spec: W-C-596
- Feature: Isolated Ground
- Cover Material: Valox 357
- Screw Terminal Torque: 14-18 in-lbs
- Base Material: Nylon
- Grounding: Isolated Ground
- NEMA: WD-1 & WD-6
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Termination: Back & Side
- Warranty: Limited Lifetime Warranty
- Flammability: Rated V-0 per UL 94
- Warranty: Limited Lifetime Warranty
- Grounding Screw: Chromated Brass
- Wire: 5
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Clamp Nuts: Nickel-Plated Brass
- ANSI: C-73
- Voltage: 120/208 VAC
- Phase: 3-Phase WYE
- Amperage: 30 A
Specs
–
| Terminations: | Side Wire Back Wire |
|---|---|
| Warranty: | Lifetime Limited |
| Amperage: | 30 |
| Color: | Orange |
| Series: | V-0-Max |
| Poles: | 4 |
| Ground: | Isolated Ground |
| NEMA Rating: | WD-1 |
| Country of Origin: | Mexico |
| Material: | Valox 357 |
